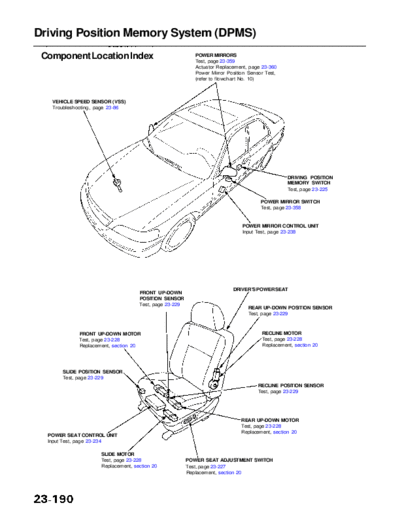

Driving Position Memory System (DPMS)
 Component Location Index                                     POWER MIRRORS
                                                              Test, page 23-359
                                                              Actuator Replacement, page 23-360
                                                              Power Mirror Position Sensor Test,
                                                              (refer to flowchart No. 10)



   VEHICLE SPEED SENSOR (VSS)
   Troubleshooting, page 23-86




                                                                                                   DRIVING POSITION
                                                                                                   MEMORY SWITCH
                                                                                                   Test, page 23-225

                                                                                         POWER MIRROR SWITCH
                                                                                         Test, page 23-358


                                                                                 POWER MIRROR CONTROL UNIT
                                                                                 Input Test, page 23-238




                                                                             DRIVER'S POWER SEAT
                                      FRONT UP-DOWN
                                      POSITION SENSOR
                                      Test, page 23-229
                                                                                    REAR UP-DOWN POSITION SENSOR
                                                                                    Test, page 23-229



            FRONT UP-DOWN MOTOR                                                          RECLINE MOTOR
            Test, page 23-228                                                            Test, page 23-228
            Replacement, section 20                                                      Replacement, section 20




      SLIDE POSITION SENSOR
      Test, page 23-229
                                                                                        RECLINE POSITION SENSOR
                                                                                        Test, page 23-229




                                                                                 REAR UP-DOWN MOTOR
                                                                                 Test, page 23-228
                                                                                 Replacement, section 20
  POWER SEAT CONTROL UNIT
  Input Test, page 23-234

                       SLIDE MOTOR
                       Test, page 23-228                   POWER SEAT ADJUSTMENT SWITCH
                       Replacement, section 20             Test, page 23-227
                                                           Replacement, section 20
           Main Menu               Table of Contents




                                                       STEERING COLUMN CONTROL
                                                       UNIT
                           STEERING COLUMN             Input Test, page 23-230
                           SWITCH
                           Test, page 23-225




TILT POSITION SENSOR
Test, page 23-226




                                                         EXTEND-RETRACT SENSOR
                       TILT MOTOR                        Test, page 23-226
                       Test, page 23-226



                               EXTEND-RETRACT MOTOR
                               Test, page 23-226
