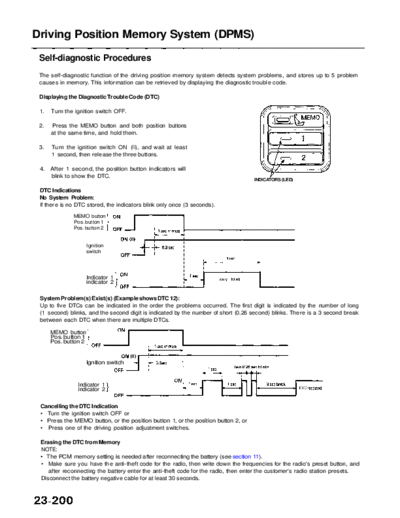

Image preview - the first page of the document



>> Download RL9604S23200A documenatation <<

Text preview - extract from the document

              Main Menu                 Table of Contents

Driving Position Memory System (DPMS)

 Self-diagnostic Procedures
 The self-diagnostic function of the driving position memory system detects system problems, and stores up to 5 problem
 causes in memory. This information can be retrieved by displaying the diagnostic trouble code.

 Displaying the Diagnostic Trouble Code (DTC)

 1.   Turn the ignition switch OFF.

 2.   Press the MEMO button and both position buttons
      at the same time, and hold them.

 3.   Turn the ignition switch ON (II), and wait at least
      1 second, then release the three buttons.

 4.   After 1 second, the position button indicators will
      blink to show the DTC.
                                                                                   INDICATORS (LED)

 DTC Indications
 No System Problem:
 If there is no DTC stored, the indicators blink only once (3 seconds).
              MEMO button
              Pos. button 1
              Pos. button 2


                   Ignition
                   switch




                   Indicator 1
                   indicator 2


 System Problem(s) Exist(s) (Example shows DTC 12):
 Up to five DTCs can be indicated in the order the problems occurred. The first digit is indicated by the number of long
 (1 second) blinks, and the second digit is indicated by the number of short (0.26 second) blinks. There is a 3 second break
 between each DTC when there are multiple DTCs.

      MEMO button
      Pos. button 1
      Pos. button 2


                      Ignition switch



                Indicator 1
                Indicator 2


 Cancelling the DTC Indication
