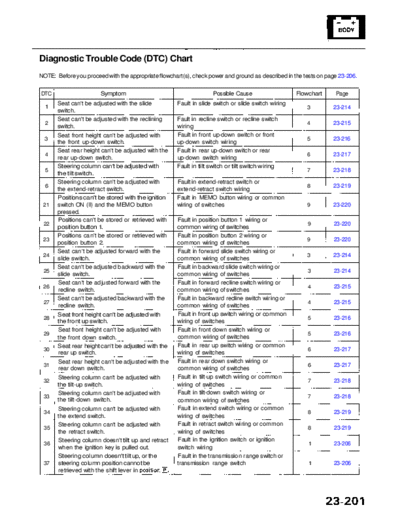

Image preview - the first page of the document
>> Download RL9604S23201A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Diagnostic Trouble Code (DTC) Chart
NOTE: Before you proceed with the appropriate flowchart(s), check power and ground as described in the tests on page 23-206.
DTC Symptom Possible Cause Flowchart Page
Seat can't be adjusted with the slide Fault in slide switch or slide switch wiring
1 3 23-214
switch.
Seat can't be adjusted with the reclining Fault in recline switch or recline switch
2 4 23-215
switch. wiring
Seat front height can't be adjusted with Fault in front up-down switch or front
3 5 23-216
the front up-down switch. up-down switch wiring
Seat rear height can't be adjusted with the Fault in rear up-down switch or rear
4 6 23-217
rear up-down switch. up-down switch wiring
Steering column can't be adjusted with Fault in tilt switch or tilt switch wiring
5 7 23-218
the tilt switch.
Steering column can't be adjusted with Fault in extend-retract switch or
6 8 23-219
the extend-retract switch. extend-retract switch wiring
Positions can't be stored with the ignition Fault in MEMO button wiring or common
21 switch ON (II) and the MEMO button wiring of switches 9 23-220
pressed.
Positions can't be stored or retrieved with Fault in position button 1 wiring or
22 9 23-220
position button 1. common wiring of switches
Positions can't be stored or retrieved with Fault in position button 2 wiring or
23 9 23-220
position button 2. common wiring of switches
Seat can't be adjusted forward with the Fault in forward slide switch wiring or
24 3 23-214
slide switch. common wiring of switches
Seat can't be adjusted backward with the Fault in backward slide switch wiring or
25 3 23-214
slide switch. common wiring of switches
Seat can't be adjusted forward with the Fault in forward recline switch wiring or
26 4 23-215
recline switch. common wiring of switches
Seat can't be adjusted backward with the Fault in backward recline switch wiring or
27 4 23-215
recline switch. common wiring of switches
Seat front height can't be adjusted with Fault in front up switch wiring or common
28 5 23-216
the front up switch. wiring of switches
Seat front height can't be adjusted with Fault in front down switch wiring or
29 5 23-216
the front down switch. common wiring of switches
Seat rear height can't be adjusted with the Fault in rear up switch wiring or common
30 6 23-217
rear up switch. wiring of switches
Seat rear height can't be adjusted with the Fault in rear down switch wiring or
31 6 23-217
rear down switch. common wiring of switches
Steering column can't be adjusted with Fault in tilt-up switch wiring or common
32 7 23-218
the tilt-up switch. wiring of switches
Steering column can't be adjusted with Fault in tilt-down switch wiring or
33 7 23-218
the tilt-down switch. common wiring of switches
Steering column can't be adjusted with Fault in extend switch wiring or common
34 8 23-219
the extend switch. wiring of switches
Steering column can't be adjusted with Fault in retract switch wiring or common
35 8 23-219
the retract switch. wiring of switches
Steering column doesn't tilt up and retract Fault in the ignition switch or ignition
36 1 23-206
when the ignition key is pulled out. switch wiring
Steering column doesn't tilt up, or the Fault in the transmission range switch or
37 steering column position cannot be transmission range switch 1 23-206
retrieved with the shift lever in
