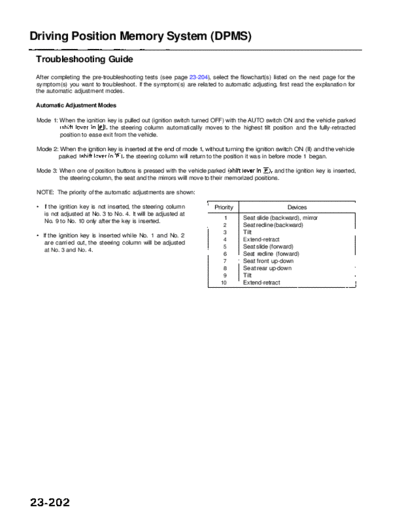

Image preview - the first page of the document
>> Download RL9604S23202A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Driving Position Memory System (DPMS)
Troubleshooting Guide
After completing the pre-troubleshooting tests (see page 23-204), select the flowchart(s) listed on the next page for the
symptom(s) you want to troubleshoot. If the symptom(s) are related to automatic adjusting, first read the explanation for
the automatic adjustment modes.
Automatic Adjustment Modes
Mode 1: When the ignition key is pulled out (ignition switch turned OFF) with the AUTO switch ON and the vehicle parked
the steering column automatically moves to the highest tilt position and the fully-retracted
position to ease exit from the vehicle.
Mode 2: When the ignition key is inserted at the end of mode 1, without turning the ignition switch ON (II) and the vehicle
parked the steering column will return to the position it was in before mode 1 began.
Mode 3: When one of position buttons is pressed with the vehicle parked and the ignition key is inserted,
the steering column, the seat and the mirrors will move to their memorized positions.
NOTE: The priority of the automatic adjustments are shown:
