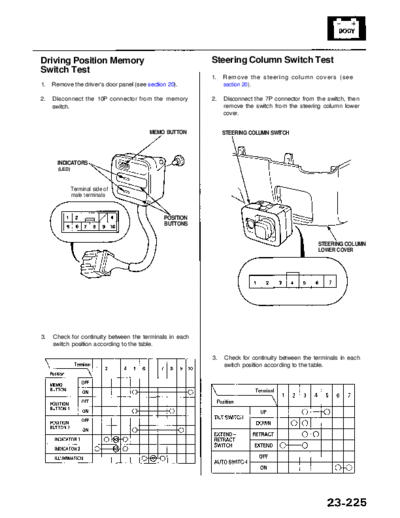

                Main Menu              Table of Contents




Driving Position Memory                                    Steering Column Switch Test
Switch Test
                                                           1.   Remove the steering column covers (see
1.   Remove the driver's door panel (see section 20).           section 20).

2.   Disconnect the 10P connector from the memory          2.   Disconnect the 7P connector from the switch, then
     switch.                                                    remove the switch from the steering column lower
                                                                cover.


                                          MEMO BUTTON           STEERING COLUMN SWITCH




       INDICATORS
       (LED)



               Terminal side of
               male terminals


                                                POSITION
                                                BUTTONS


                                                                                                  STEERING COLUMN
                                                                                                  LOWER COVER




3.   Check for continuity between the terminals in each
     switch position according to the table.

                                                           3.   Check for continuity between the terminals in each
                                                                switch position according to the table.
