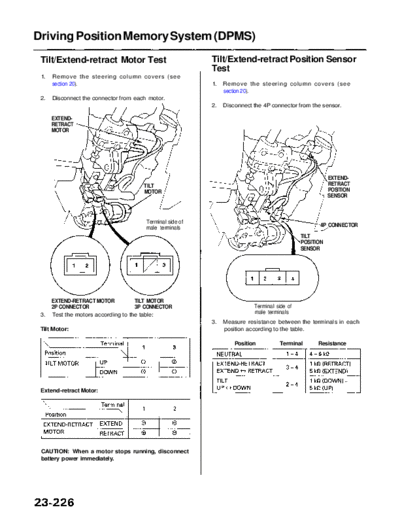

Image preview - the first page of the document



>> Download RL9604S23226A documenatation <<

Text preview - extract from the document

                Main Menu            Table of Contents


Driving Position Memory System (DPMS)
 Tilt/Extend-retract Motor Test                            Tilt/Extend-retract Position Sensor
                                                           Test
 1.   Remove the steering column covers (see
      section 20).                                         1.   Remove the steering column covers (see
                                                                section 20).
 2.   Disconnect the connector from each motor.
                                                           2.   Disconnect the 4P connector from the sensor.

      EXTEND-
      RETRACT
      MOTOR




                                                                                                         EXTEND-
                                       TILT                                                              RETRACT
                                       MOTOR                                                             POSITION
                                                                                                         SENSOR



                                        Terminal side of
                                                                                                     4P CONNECTOR
                                        male terminals
                                                                                              TILT
                                                                                              POSITION
                                                                                              SENSOR




      EXTEND-RETRACT MOTOR           TILT MOTOR
      2P CONNECTOR                   3P CONNECTOR                          Terminal side of
 3.   Test the motors according to the table:                              male terminals
                                                           3.   Measure resistance between the terminals in each
 Tilt Motor:                                                    position according to the table.

                                                                    Position         Terminal       Resistance




 Extend-retract Motor:




 CAUTION: When a motor stops running, disconnect
 battery power immediately.
