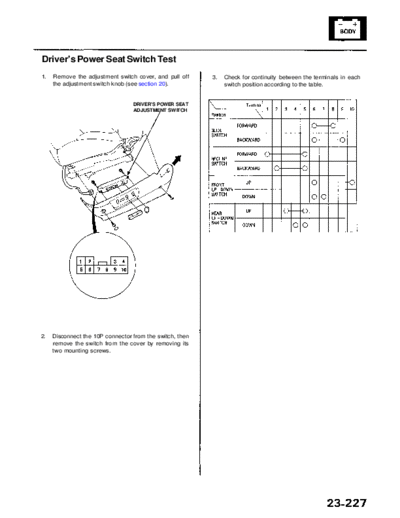

Image preview - the first page of the document



>> Download RL9604S23227A documenatation <<

Text preview - extract from the document

             Main Menu               Table of Contents




Driver's Power Seat Switch Test
1.   Remove the adjustment switch cover, and pull off     3.   Check for continuity between the terminals in each
     the adjustment switch knob (see section 20).              switch position according to the table.


                                  DRIVER'S POWER SEAT
                                  ADJUSTMENT SWITCH




2.   Disconnect the 10P connector from the switch, then
     remove the switch from the cover by removing its
     two mounting screws.
