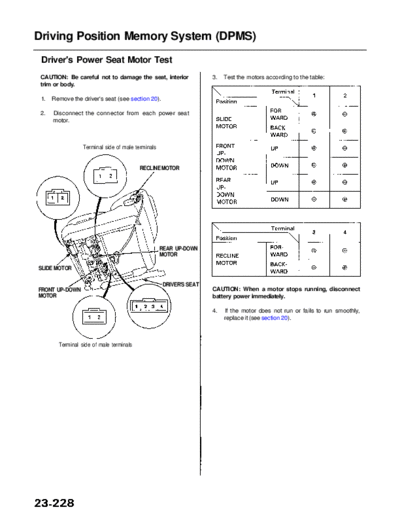

              Main Menu                   Table of Contents


Driving Position Memory System (DPMS)
 Driver's Power Seat Motor Test
 CAUTION: Be careful not to damage the seat, interior               3.   Test the motors according to the table:
 trim or body.

 1.   Remove the driver's seat (see section 20).

 2.   Disconnect the connector from each power seat
      motor.



                  Terminal side of male terminals


                                          RECLINE MOTOR




                                                    REAR UP-DOWN
                                                    MOTOR

SLIDE MOTOR

                                                    DRIVER'S SEAT
FRONT UP-DOWN                                                       CAUTION: When a motor stops running, disconnect
MOTOR                                                               battery power immediately.

                                                                    4.   If the motor does not run or fails to run smoothly,
                                                                         replace it (see section 20).



        Terminal side of male terminals
