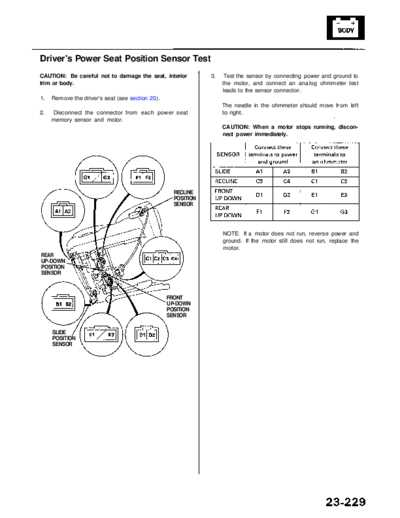

Driver's Power Seat Position Sensor Test
CAUTION: Be careful not to damage the seat, interior            3.    Test the sensor by connecting power and ground to
trim or body.                                                        the motor, and connect an analog ohmmeter test
                                                                     leads to the sensor connector.
1.   Remove the driver's seat (see section 20).
                                                                     The needle in the ohmmeter should move from left
2.   Disconnect the connector from each power seat                   to right.
     memory sensor and motor.
                                                                     CAUTION: When a motor stops running, discon-
                                                                     nect power immediately.




                                                     RECLINE
                                                     POSITION
                                                     SENSOR




                                                                     NOTE: If a motor does not run, reverse power and
                                                                     ground. If the motor still does not run, replace the
                                                                     motor.
REAR
UP-DOWN
POSITION
SENSOR



                                                  FRONT
                                                  UP-DOWN
                                                  POSITION
                                                  SENSOR

     SLIDE
     POSITION
     SENSOR
