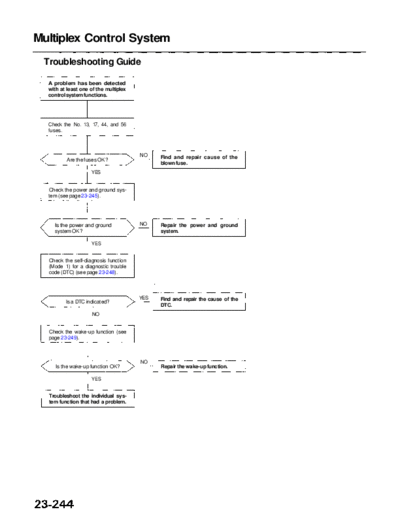

            Main Menu                  Table of Contents


Multiplex Control System
 Troubleshooting Guide

  A problem has been detected
  with at least one of the multiplex
  control system functions.




  Check the No. 13, 17, 44, and 56
  fuses.



                                       NO       Find and repair cause of the
          Are the fuses OK?
                                                blown fuse.
                    YES


  Check the power and ground sys-
  tem (see page 23-245).




    Is the power and ground            NO       Repair the power and ground
    system OK?                                  system.

                    YES


  Check the self-diagnosis function
  (Mode 1) for a diagnostic trouble
  code (DTC) (see page 23-248).



                                       YES      Find and repair the cause of the
         Is a DTC indicated?
                                                DTC.
                     NO


  Check the wake-up function (see
  page 23-249).



                                       NO
     Is the wake-up function OK?                Repair the wake-up function.

                    YES


  Troubleshoot the individual sys-
  tem function that had a problem.
