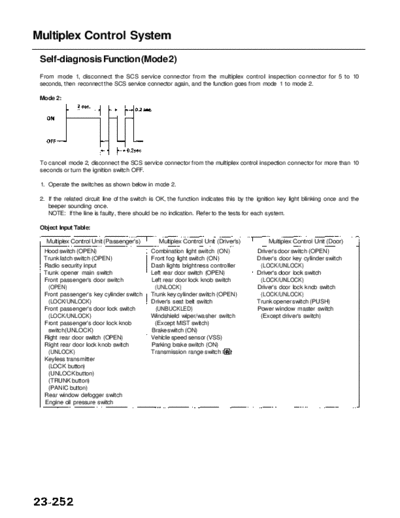

Image preview - the first page of the document
RL9604S23252A


>> Download RL9604S23252A documenatation <<

Text preview - extract from the document
              Main Menu                   Table of Contents


Multiplex Control System
 Self-diagnosis Function (Mode 2)
 From mode 1, disconnect the SCS service connector from the multiplex control inspection connector for 5 to 10
 seconds, then reconnect the SCS service connector again, and the function goes from mode 1 to mode 2.

 Mode 2:




 To cancel mode 2, disconnect the SCS service connector from the multiplex control inspection connector for more than 10
 seconds or turn the ignition switch OFF.

 1. Operate the switches as shown below in mode 2.

 2. If the related circuit line of the switch is OK, the function indicates this by the ignition key light blinking once and the
    beeper sounding once.
    NOTE: If the line is faulty, there should be no indication. Refer to the tests for each system.

 Object Input Table:

   Multiplex Control Unit (Passenger's)          Multiplex Control Unit (Driver's)         Multiplex Control Unit (Door)
  Hood switch (OPEN)                          Combination light switch (ON)            Driver's door switch (OPEN)
  Trunk latch switch (OPEN)                   Front fog light switch (ON)              Driver's door key cylinder switch
  Radio security input                        Dash lights brightness controller         (LOCK/UNLOCK)
  Trunk opener main switch                    Left rear door switch (OPEN)             Driver's door lock switch
  Front passenger's door switch               Left rear door lock knob switch           (LOCK/UNLOCK)
   (OPEN)                                      (UNLOCK)                                Driver's door lock knob switch
  Front passenger's key cylinder switch       Trunk key cylinder switch (OPEN)          (LOCK/UNLOCK)
   (LOCK/UNLOCK)                              Driver's seat belt switch                Trunk opener switch (PUSH)
  Front passenger's door lock switch           (UNBUCKLED)                             Power window master switch
   (LOCK/UNLOCK)                              Windshield wiper/washer switch            (Except driver's switch)
  Front passenger's door lock knob             (Except MIST switch)
   switch (UNLOCK)                            Brake switch (ON)
  Right rear door switch (OPEN)               Vehicle speed sensor (VSS)
  Right rear door lock knob switch            Parking brake switch (ON)
    (UNLOCK)                                  Transmission range switch
  Keyless transmitter
   (LOCK button)
    (UNLOCK button)
    (TRUNK button)
    (PANIC button)
  Rear window defogger switch
  Engine oil pressure switch
