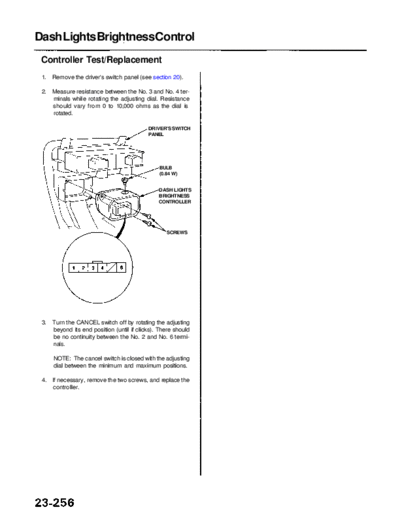

RL9604S23256A


>> Download RL9604S23256A documenatation <<

Text preview - extract from the document
              Main Menu                  Table of Contents


Dash Lights Brightness Control
 Controller Test/Replacement
 1. Remove the driver's switch panel (see section 20).

 2.   Measure resistance between the No. 3 and No. 4 ter-
      minals while rotating the adjusting dial. Resistance
      should vary from 0 to 10,000 ohms as the dial is
      rotated.

                                            DRIVER'S SWITCH
                                            PANEL




                                                BULB
                                                (0.84 W)


                                                DASH LIGHTS
                                                BRIGHTNESS
                                                CONTROLLER




                                                   SCREWS




 3.   Turn the CANCEL switch off by rotating the adjusting
      beyond its end position (until if clicks). There should
      be no continuity between the No. 2 and No. 6 termi-
      nals.

      NOTE: The cancel switch is closed with the adjusting
      dial between the minimum and maximum positions.

 4.   If necessary, remove the two screws, and replace the
       controller.
