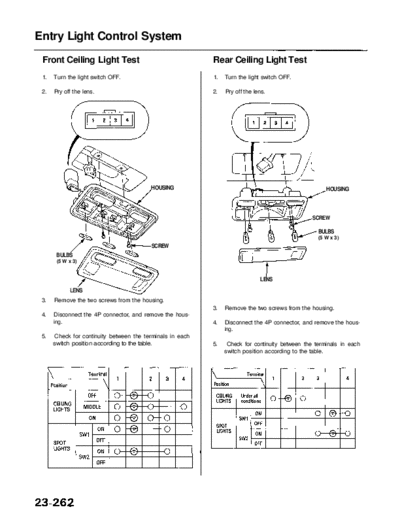

Entry Light Control System
 Front Ceiling Light Test                                  Rear Ceiling Light Test
 1.   Turn the light switch OFF.                           1.   Turn the light switch OFF.

 2.   Pry off the lens.                                    2.   Pry off the lens.




                                         HOUSING                                                      HOUSING




                                                                                                 SCREW

                                                                                                   BULBS
                                                                                                   (5 W x 3)
                                          SCREW
       BULBS
       (5 W x 3)


                                                                               LENS
            LENS
 3.   Remove the two screws from the housing.
                                                           3.   Remove the two screws from the housing.
 4.   Disconnect the 4P connector, and remove the hous-
      ing.                                                 4.   Disconnect the 4P connector, and remove the hous-
                                                                ing.
 5.   Check for continuity between the terminals in each
      switch position according to the table.              5.    Check for continuity between the terminals in each
                                                                switch position according to the table.
