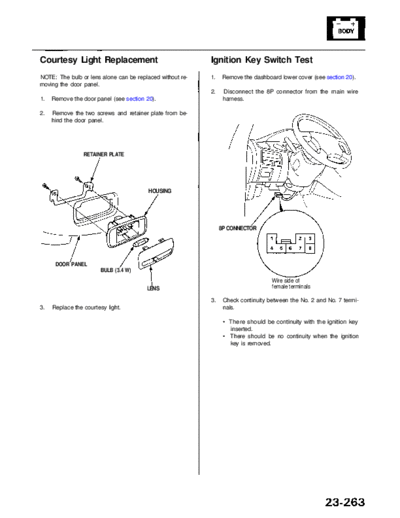

Image preview - the first page of the document
>> Download RL9604S23263A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Courtesy Light Replacement Ignition Key Switch Test
NOTE: The bulb or lens alone can be replaced without re- 1. Remove the dashboard lower cover (see section 20).
moving the door panel.
2. Disconnect the 8P connector from the main wire
1. Remove the door panel (see section 20). harness.
2. Remove the two screws and retainer plate from be-
hind the door panel.
RETAINER PLATE
HOUSING
8P CONNECTOR
DOOR PANEL
BULB (3.4 W)
Wire side of
LENS female terminals
3. Check continuity between the No. 2 and No. 7 termi-
3. Replace the courtesy light. nals.
