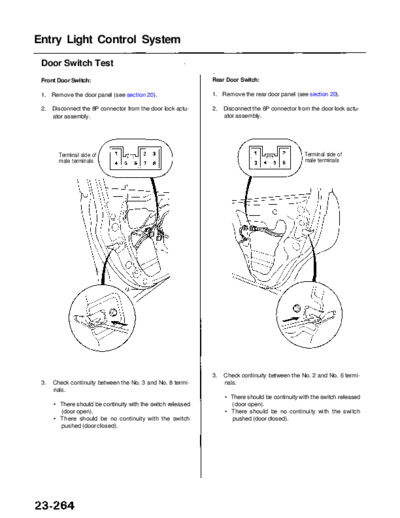

              Main Menu                Table of Contents



Entry Light Control System

 Door Switch Test
 Front Door Switch:                                           Rear Door Switch:

 1. Remove the door panel (see section 20).                   1. Remove the rear door panel (see section 20).

 2.   Disconnect the 8P connector from the door lock actu-    2.   Disconnect the 6P connector from the door lock actu-
      ator assembly.                                               ator assembly.




        Terminal side of                                                                          Terminal side of
        male terminals                                                                            male terminals




                                                              3.   Check continuity between the No. 2 and No. 6 termi-
 3.   Check continuity between the No. 3 and No. 8 termi-          nals.
      nals.
