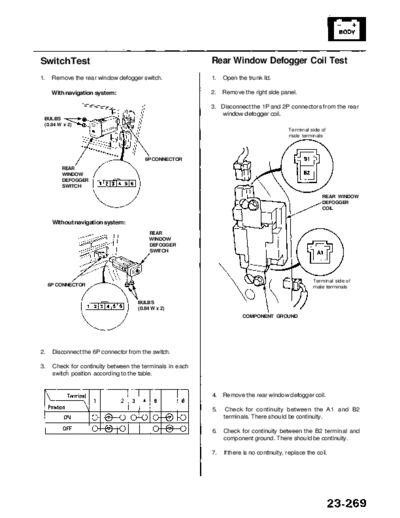

Image preview - the first page of the document



>> Download RL9604S23269A documenatation <<

Text preview - extract from the document

                Main Menu             Table of Contents




Switch Test                                                Rear Window Defogger Coil Test
1.    Remove the rear window defogger switch.              1.   Open the trunk lid.

      With navigation system:                              2.   Remove the right side panel.

                                                           3. Disconnect the 1P and 2P connectors from the rear
                                                              window defogger coil.
 BULBS
 (0.84 W x 2)
                                                                                           Terminal side of
                                                                                           male terminals



                                        6P CONNECTOR
         REAR
         WINDOW
         DEFOGGER
         SWITCH

                                                                                                         REAR WINDOW
                                                                                                         DEFOGGER
                                                                                                         COIL

      Without navigation system:
                                          REAR
                                          WINDOW
                                          DEFOGGER
                                          SWITCH




                                                                                                     Terminal side of
     6P CONNECTOR                                                                                    male terminals


                                     BULBS
                                     (0.84 W x 2)
                                                                        COMPONENT GROUND




2.    Disconnect the 6P connector from the switch.

3.    Check for continuity between the terminals in each
      switch position according to the table.


                                                           4. Remove the rear window defogger coil.

                                                           5.    Check for continuity between the A1 and B2
                                                                terminals. There should be continuity.

                                                           6.   Check for continuity between the B2 terminal and
                                                                component ground. There should be continuity.

                                                           7.   If there is no continuity, replace the coil.
