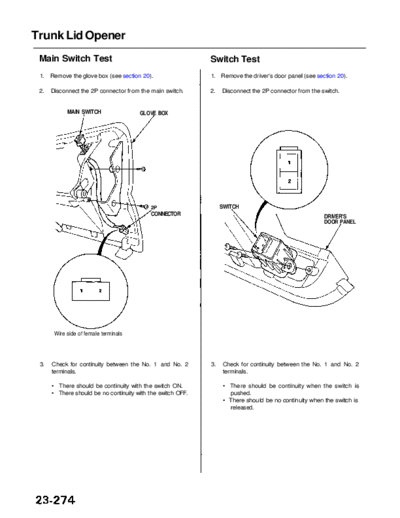

               Main Menu               Table of Contents


Trunk Lid Opener
 Main Switch Test                                            Switch Test
 1.   Remove the glove box (see section 20).                 1.   Remove the driver's door panel (see section 20).

 2.   Disconnect the 2P connector from the main switch.      2.   Disconnect the 2P connector from the switch.


            MAIN SWITCH                GLOVE BOX




                                           2P                     SWITCH
                                           CONNECTOR                                                     DRIVER'S
                                                                                                         DOOR PANEL




       Wire side of female terminals




 3.   Check for continuity between the No. 1 and No. 2       3.   Check for continuity between the No. 1 and No. 2
      terminals.                                                  terminals.
