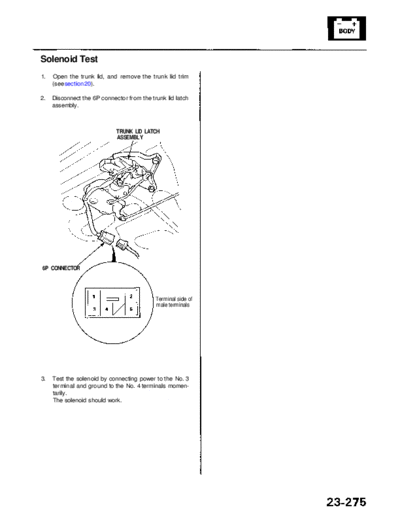

             Main Menu                Table of Contents




Solenoid Test
1.   Open the trunk lid, and remove the trunk lid trim
     (see section 20).

2.   Disconnect the 6P connector from the trunk lid latch
     assembly.



                             TRUNK LID LATCH
                             ASSEMBLY




6P CONNECTOR




                                            Terminal side of
                                            male terminals




3.   Test the solenoid by connecting power to the No. 3
     terminal and ground to the No. 4 terminals momen-
     tarily.
     The solenoid should work.
