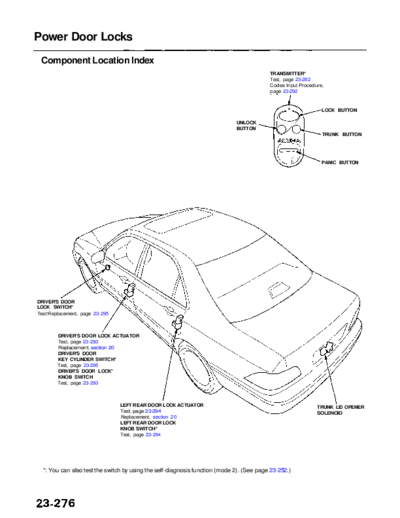

Image preview - the first page of the document



>> Download RL9604S23276A documenatation <<

Text preview - extract from the document

              Main Menu                Table of Contents


Power Door Locks
 Component Location Index
                                                                                          TRANSMITTER*
                                                                                          Test, page 23-282
                                                                                          Codes Input Procedure,
                                                                                          page 23-292


                                                                                                               LOCK BUTTON

                                                                             UNLOCK
                                                                             BUTTON
                                                                                                               TRUNK BUTTON




                                                                                                               PANIC BUTTON




DRIVER'S DOOR
LOCK SWITCH*
Test/Replacement, page 23-295



        DRIVER'S DOOR LOCK ACTUATOR
        Test, page 23-293
        Replacement, section 20
        DRIVER'S DOOR
        KEY CYLINDER SWITCH*
        Test, page 23-295
        DRIVER'S DOOR LOCK*
        KNOB SWITCH
        Test, page 23-293



                                LEFT REAR DOOR LOCK ACTUATOR                                                 TRUNK LID OPENER
                                Test, page 23-294                                                            SOLENOID
                                Replacement, section 20
                                LEFT REAR DOOR LOCK
                                KNOB SWITCH*
                                Test, page 23-294




  *: You can also test the switch by using the self-diagnosis function (mode 2). (See page 23-252.)
             Main Menu                 Table of Contents




                                             WINDOW ANTENNA                              KEYLESS BUZZER




                                                                                                    FRONT PASSENGER'S
                                                                                                    DOOR LOCK SWITCH*
                                                                                                    Test/Replacement, page 23-295


                                                                                 FRONT PASSENGER'S DOOR LOCK ACTUATOR
                                                                                 Test, page 23-293
                                                                                 Replacement, section 20
                                                                                 FRONT PASSENGER'S KEY
                                                                                 CYLINDER SWITCH*
                                                                                 Test, page 23-295
                                                                                 Replacement, section 20
                                                                                 FRONT PASSENGER'S DOOR LOCK
                                                                                 KNOB SWITCH*
                                                                                 Test, page 23-293

                                                                RIGHT REAR DOOR LOCK ACTUATOR
                                                                Test, page 23-294
                                                                Replacement, section 20
                                                                RIGHT REAR DOOR LOCK
                                                                KNOB SWITCH*
                                                                Test, page 23-294
                                    KEYLESS RECEIVER UNIT
                                    Input Test, page 23-290




*: You can also test the switch by using the self-diagnosis function (mode 2). (See page 23-252).
