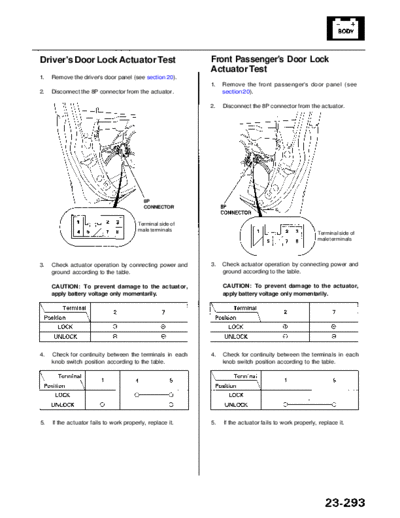

Image preview - the first page of the document



>> Download RL9604S23293A documenatation <<

Text preview - extract from the document

              Main Menu                   Table of Contents




Driver's Door Lock Actuator Test                              Front Passenger's Door Lock
                                                              Actuator Test
1.   Remove the driver's door panel (see section 20).
                                                              1.   Remove the front passenger's door panel (see
2.   Disconnect the 8P connector from the actuator.                section 20).

                                                              2.   Disconnect the 8P connector from the actuator.




                                           8P
                                           CONNECTOR


                                        Terminal side of
                                        male terminals
                                                                                                          Terminal side of
                                                                                                          male terminals




3.   Check actuator operation by connecting power and         3.   Check actuator operation by connecting power and
     ground according to the table.                                ground according to the table.

     CAUTION: To prevent damage to the actuator,                   CAUTION: To prevent damage to the actuator,
     apply battery voltage only momentarily.                       apply battery voltage only momentarily.




4.   Check for continuity between the terminals in each       4.   Check for continuity between the terminals in each
     knob switch position according to the table.                  knob switch position according to the table.




5.   If the actuator fails to work properly, replace it.      5.   If the actuator fails to work properly, replace it.
