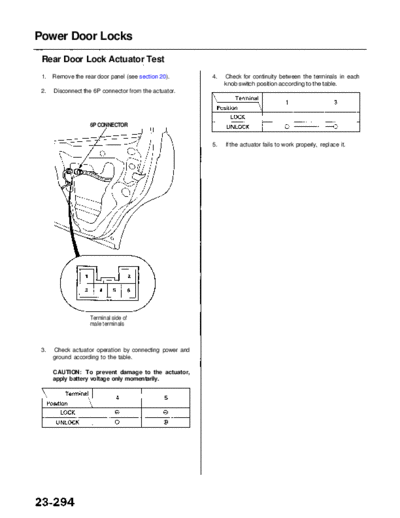

              Main Menu                Table of Contents


Power Door Locks
 Rear Door Lock Actuator Test
 1.   Remove the rear door panel (see section 20).         4.   Check for continuity between the terminals in each
                                                                knob switch position according to the table.
 2.   Disconnect the 6P connector from the actuator.




                    6P CONNECTOR


                                                           5.   If the actuator fails to work properly, replace it.




                    Terminal side of
                    male terminals



 3.   Check actuator operation by connecting power and
      ground according to the table.

      CAUTION: To prevent damage to the actuator,
      apply battery voltage only momentarily.
