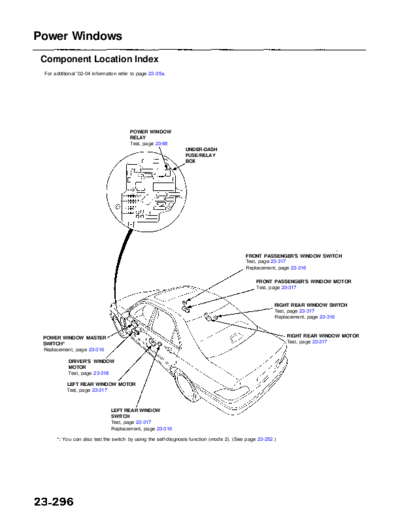

Image preview - the first page of the document
>> Download RL9604S23296A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Power Windows
Component Location Index
For additional '02-04 information refer to page 23-35a.
POWER WINDOW
RELAY
Test, page 23-68
UNDER-DASH
FUSE/RELAY
BOX
FRONT PASSENGER'S WINDOW SWITCH
Test, page 23-317
Replacement, page 23-316
FRONT PASSENGER'S WINDOW MOTOR
Test, page 23-317
RIGHT REAR WINDOW SWITCH
Test, page 23-317
Replacement, page 23-316
POWER WINDOW MASTER RIGHT REAR WINDOW MOTOR
SWITCH* Test, page 23-317
Replacement, page 23-316
DRIVER'S WINDOW
MOTOR
Test, page 23-318
LEFT REAR WINDOW MOTOR
Test, page 23-317
LEFT REAR WINDOW
SWITCH
Test, page 23-317
Replacement, page 23-316
You can also test the switch by using the self-diagnosis function (mode 2). (See page 23-252.)
Main Menu Table of Contents
*1: '96-97 models
*2: '98 - 00 models
UNDER-HOOD RELAY DRIVER'S POWER WINDOW MOTOR
BOX B RELAY B*2
/Test, page 23-69
POWER WINDOW MASTER
SWITCH RELAY*2 POWER WINDOW MASTER SWITCH RELAY*
Test, page 23-69 Test, page 23-67
UNDER-HOOD RELAY
BOXC
DRIVER'S POWER WINDOW
MOTOR RELAY A*2
Test, page 23-69
