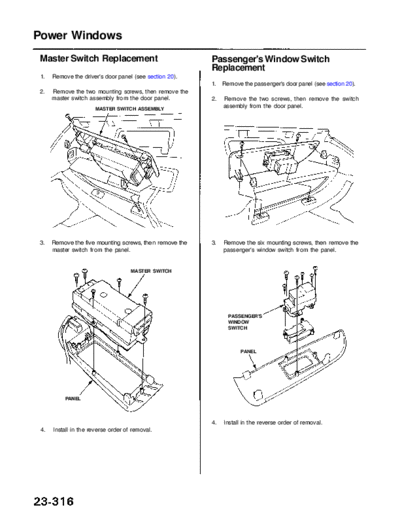

Image preview - the first page of the document
RL9604S23316A


>> Download RL9604S23316A documenatation <<

Text preview - extract from the document
              Main Menu                  Table of Contents

Power Windows
 Master Switch Replacement                                   Passenger's Window Switch
                                                             Replacement
 1.   Remove the driver's door panel (see section 20).
                                                             1.   Remove the passenger's door panel (see section 20).
 2.   Remove the two mounting screws, then remove the
      master switch assembly from the door panel.            2.   Remove the two screws, then remove the switch
                                                                  assembly from the door panel.
                       MASTER SWITCH ASSEMBLY




 3.   Remove the five mounting screws, then remove the       3.   Remove the six mounting screws, then remove the
      master switch from the panel.                               passenger's window switch from the panel.


                                     MASTER SWITCH




                                                                    PASSENGER'S
                                                                    WINDOW
                                                                    SWITCH



                                                                         PANEL




           PANEL




                                                             4.   Install in the reverse order of removal.
 4.   Install in the reverse order of removal.
