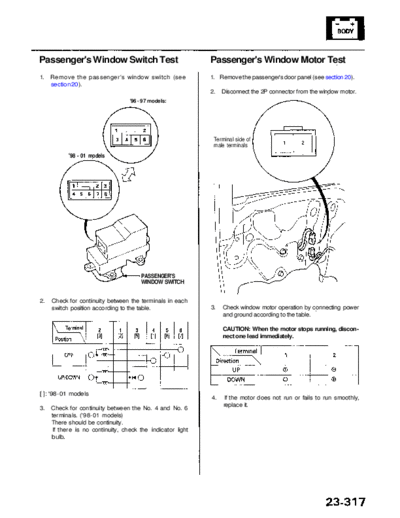

             Main Menu                 Table of Contents




Passenger's Window Switch Test                              Passenger's Window Motor Test
1.   Remove the passenger's window switch (see              1. Remove the passenger's door panel (see section 20).
     section 20).
                                                            2.   Disconnect the 2P connector from the window motor.
                                   '96 - 97 models:




                                                             Terminal side of
                                                             male terminals
           '98 - 01 models




                                       PASSENGER'S
                                       WINDOW SWITCH


2.   Check for continuity between the terminals in each
     switch position according to the table.                3.   Check window motor operation by connecting power
                                                                 and ground according to the table.

                                                                 CAUTION: When the motor stops running, discon-
                                                                 nect one lead immediately.




[ ]: '98-01 models
                                                            4.   If the motor does not run or fails to run smoothly,
                                                                 replace it.
3.   Check for continuity between the No. 4 and No. 6
     terminals. ('98-01 models)
     There should be continuity.
     If there is no continuity, check the indicator light
     bulb.
