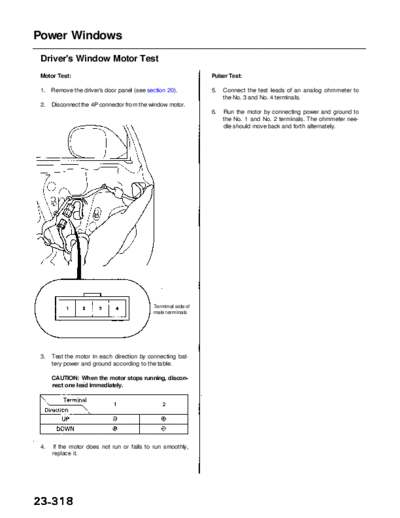

Image preview - the first page of the document
>> Download RL9604S23318A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Power Windows
Driver's Window Motor Test
Motor Test: Pulser Test:
1. Remove the driver's door panel (see section 20). 5. Connect the test leads of an analog ohmmeter to
the No. 3 and No. 4 terminals.
2. Disconnect the 4P connector from the window motor.
6. Run the motor by connecting power and ground to
the No. 1 and No. 2 terminals. The ohmmeter nee-
dle should move back and forth alternately.
Terminal side of
male terminals
3. Test the motor in each direction by connecting bat-
tery power and ground according to the table.
CAUTION: When the motor stops running, discon-
nect one lead immediately.
4. If the motor does not run or fails to run smoothly,
replace it.
