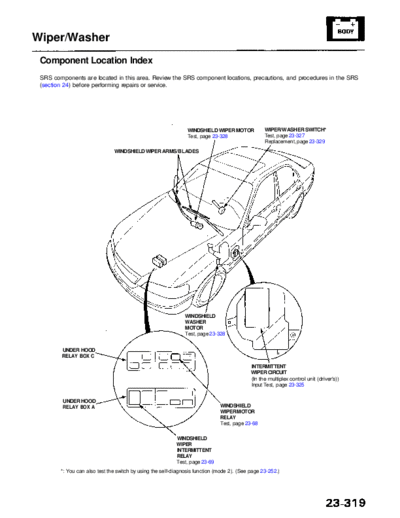

Main Menu Table of Contents
Wiper/Washer
Component Location Index
SRS components are located in this area. Review the SRS component locations, precautions, and procedures in the SRS
(section 24) before performing repairs or service.
WINDSHIELD WIPER MOTOR WIPER/WASHER SWITCH*
Test, page 23-328 Test, page 23-327
Replacement, page 23-329
WINDSHIELD WIPER ARMS/BLADES
WINDSHIELD
WASHER
MOTOR
Test, page 23-328
UNDER HOOD
RELAY BOX C
INTERMITTENT
WIPER CIRCUIT
(In the multiplex control unit (driver's))
Input Test, page 23-325
UNDER HOOD
RELAY BOX A WINDSHIELD
WIPER MOTOR
RELAY
Test, page 23-68
WINDSHIELD
WIPER
INTERMITTENT
RELAY
Test, page 23-69
*: You can also test the switch by using the self-diagnosis function (mode 2). (See page 23-252.)
