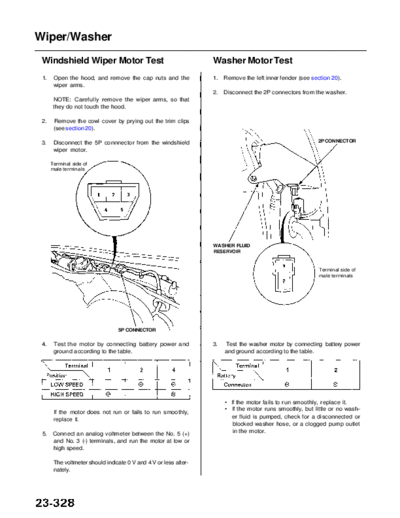

Image preview - the first page of the document



>> Download RL9604S23328A documenatation <<

Text preview - extract from the document

               Main Menu                  Table of Contents


Wiper/Washer
 Windshield Wiper Motor Test                                      Washer Motor Test
 1.    Open the hood, and remove the cap nuts and the             1.   Remove the left inner fender (see section 20).
       wiper arms.
                                                                  2.   Disconnect the 2P connectors from the washer.
       NOTE: Carefully remove the wiper arms, so that
       they do not touch the hood.

 2.    Remove the cowl cover by prying out the trim clips
       (see section 20).

 3.    Disconnect the 5P connnector from the windshield                                                     2P CONNECTOR
       wiper motor.

      Terminal side of
      male terminals




                                                                  WASHER FLUID
                                                                  RESERVOIR


                                                                                                            Terminal side of
                                                                                                            male terminals




                                 5P CONNECTOR


 4.    Test the motor by connecting battery power and             3.   Test the washer motor by connecting battery power
       ground according to the table.                                  and ground according to the table.
