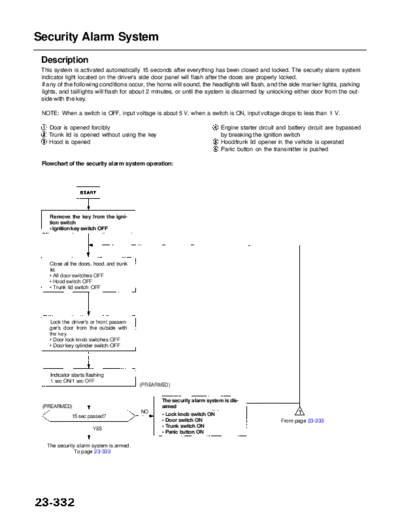

Image preview - the first page of the document
>> Download RL9604S23332A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Security Alarm System
Description
This system is activated automatically 15 seconds after everything has been closed and locked. The security alarm system
indicator light located on the driver's side door panel will flash after the doors are properly locked.
If any of the following conditions occur, the horns will sound, the headlights will flash, and the side marker lights, parking
lights, and taillights will flash for about 2 minutes, or until the system is disarmed by unlocking either door from the out-
side with the key.
NOTE: When a switch is OFF, input voltage is about 5 V. when a switch is ON, input voltage drops to less than 1 V.
Door is opened forcibly Engine starter circuit and battery circuit are bypassed
Trunk lid is opened without using the key by breaking the ignition switch
Hood is opened Hood/trunk lid opener in the vehicle is operated
Panic button on the transmitter is pushed
Flowchart of the security alarm system operation:
Remove the key from the igni-
tion switch
