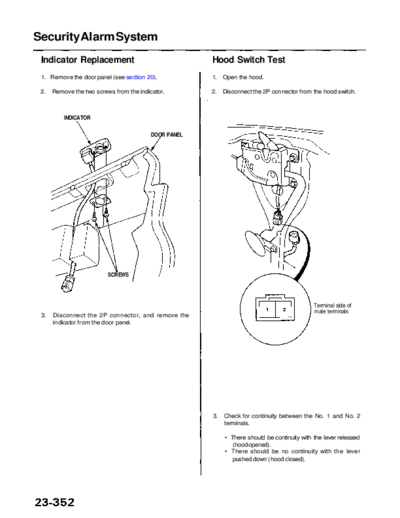

Image preview - the first page of the document



>> Download RL9604S23352A documenatation <<

Text preview - extract from the document

             Main Menu               Table of Contents


Security Alarm System
 Indicator Replacement                                   Hood Switch Test
 1. Remove the door panel (see section 20).              1.   Open the hood.

 2.   Remove the two screws from the indicator.          2. Disconnect the 2P connector from the hood switch.



          INDICATOR

                                          DOOR PANEL




                          SCREWS




                                                                                                Terminal side of
                                                                                                male terminals
 3.   Disconnect the 2P connector, and remove the
      indicator from the door panel.




                                                         3.   Check for continuity between the No. 1 and No. 2
                                                              terminals.
