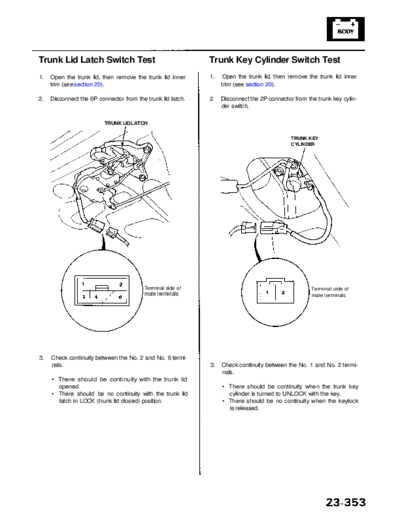

Image preview - the first page of the document
>> Download RL9604S23353A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Trunk Lid Latch Switch Test Trunk Key Cylinder Switch Test
1. Open the trunk lid, then remove the trunk lid inner 1. Open the trunk lid, then remove the trunk lid inner
trim (see section 20). trim (see section 20).
2. Disconnect the 6P connector from the trunk lid latch. 2. Disconnect the 2P connector from the trunk key cylin-
der switch.
TRUNK LID LATCH
TRUNK KEY
CYLINDER
Terminal side of Terminal side of
male terminals male terminals
3. Check continuity between the No. 2 and No. 6 termi-
nals. 3. Check continuity between the No. 1 and No. 2 termi-
nals.
