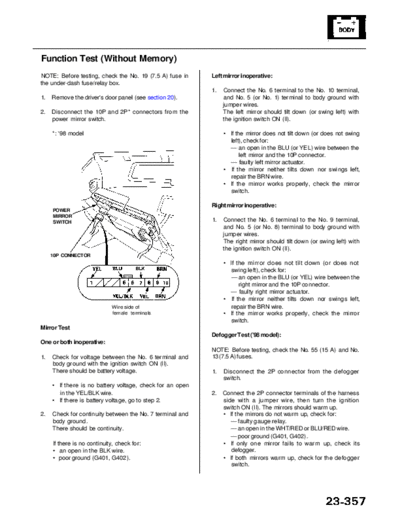

Image preview - the first page of the document



>> Download RL9604S23357A documenatation <<

Text preview - extract from the document

              Main Menu                      Table of Contents




Function Test (Without Memory)
NOTE: Before testing, check the No. 19 (7.5 A) fuse in           Left mirror inoperative:
the under-dash fuse/relay box.
                                                                 1.   Connect the No. 6 terminal to the No. 10 terminal,
1.   Remove the driver's door panel (see section 20).                 and No. 5 (or No. 1) terminal to body ground with
                                                                      jumper wires.
2.   Disconnect the 10P and 2P* connectors from the                   The left mirror should tilt down (or swing left) with
     power mirror switch.                                             the ignition switch ON (II).

     *: '98 model
