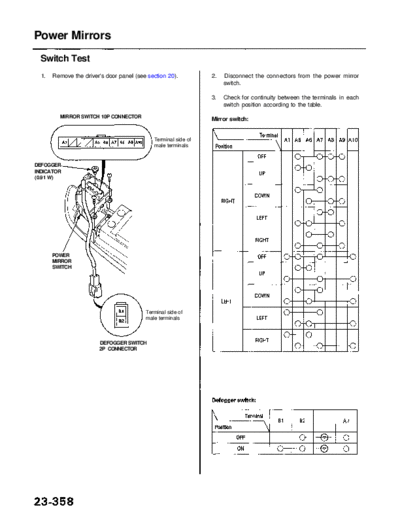

Power Mirrors
Switch Test
1. Remove the driver's door panel (see section 20). 2. Disconnect the connectors from the power mirror
switch.
3. Check for continuity between the terminals in each
switch position according to the table.
MIRROR SWITCH 10P CONNECTOR Mirror switch:
Terminal side of
male terminals
DEFOGGER
INDICATOR
(0.91 W)
POWER
MIRROR
SWITCH
Terminal side of
male terminals
DEFOGGER SWITCH
2P CONNECTOR
