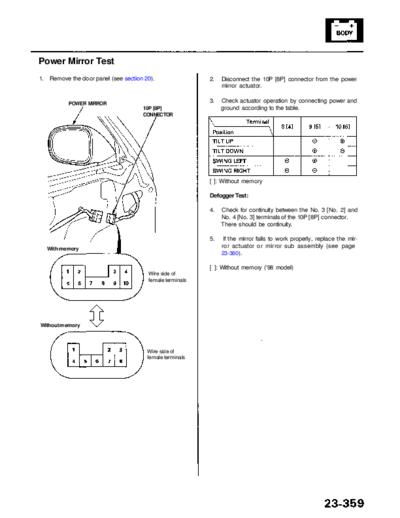

              Main Menu               Table of Contents




Power Mirror Test
1.   Remove the door panel (see section 20).                2.   Disconnect the 10P [8P] connector from the power
                                                                 mirror actuator.

                                                            3.   Check actuator operation by connecting power and
            POWER MIRROR
                                       10P [8P]                  ground according to the table.
                                       CONNECTOR




                                                            [ ]: Without memory

                                                            Defogger Test:

                                                            4.   Check for continuity between the No. 3 [No. 2] and
                                                                 No. 4 [No. 3] terminals of the 10P [8P] connector.
                                                                 There should be continuity.

                                                            5.   If the mirror fails to work properly, replace the mir-
     With memory                                                 ror actuator or mirror sub assembly (see page
                                                                 23-360).

                                                            [ ]: Without memory ('98 model)
                                         Wire side of
                                         female terminals




Without memory




                                         Wire side of
                                         female terminals
