             Main Menu                 Table of Contents


Description
 Overview
 The Acura Navigation System is a highly-sophisticated, hybrid locating system that uses satellites and a map database to
 show you where you are and to help guide you to a desired destination.

 The Navigation System receives signals from the Global Positioning System (GPS), a network of 24 satellites in orbit
 around the earth. By receiving signals from several of these satellites, the Navigation System can determine the latitude
 and longitude of the vehicle. In addition, signals from the system's yaw rate sensor and the vehicle speed sensor (VSS)
 enable the system to keep track of the vehicle's direction and speed of travel.

 This hybrid system has advantages over a system that is either entirely self-contained or one that relies totally on the
 GPS. For example, the self-contained portion of the system can keep track of vehicle position even when satellite signals
 cannot be received, and the GPS can keep track of the vehicle position even when the vehicle is transported by ferry.

 The Navigation System applies all this location, direction, and speed information to the maps and calculates a route to the
 destination entered. As you drive to that destination, the system provides both visual and audio guidance.

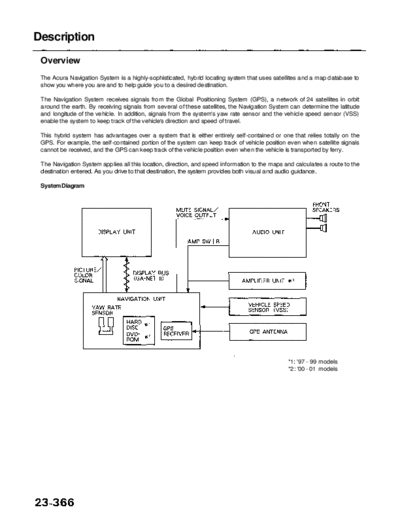

 System Diagram




                                                                                                *1: '97 - 99 models
                                                                                                *2: '00 - 01 models
