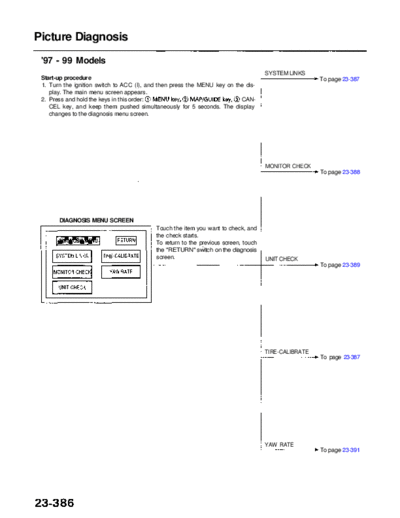

Image preview - the first page of the document



>> Download RL9604S23386A documenatation <<

Text preview - extract from the document

             Main Menu               Table of Contents


Picture Diagnosis
 '97 - 99 Models
                                                                                     SYSTEM LINKS
 Start-up procedure                                                                                   To page 23-387
 1. Turn the ignition switch to ACC (I), and then press the MENU key on the dis-
    play. The main menu screen appears.
 2. Press and hold the keys in this order:                                CAN-
    CEL key, and keep them pushed simultaneously for 5 seconds. The display
    changes to the diagnosis menu screen.




                                                                                     MONITOR CHECK
                                                                                                      To page 23-388




       DIAGNOSIS MENU SCREEN
                                           Touch the item you want to check, and
                                           the check starts.
                                           To return to the previous screen, touch
                                           the "RETURN" switch on the diagnosis
                                           screen.                                   UNIT CHECK
                                                                                                      To page 23-389




                                                                                     TIRE-CALIBRATE
                                                                                                      To page 23-387




                                                                                     YAW RATE
                                                                                                      To page 23-391
           Main Menu         Table of Contents
