Service Manuals, User Guides, Schematic Diagrams or docs for : . Car Manuals Acura 3.5RL 1996-2004 Approved srm RL9604S24003A

<< Back | Home

Most service manuals and schematics are PDF files, so You will need Adobre Acrobat Reader to view : Acrobat Download Some of the files are DjVu format. Readers and resources available here : DjVu Resources
For the compressed files, most common are zip and rar. Please, extract files with Your favorite compression software ( WinZip, WinRAR ... ) before viewing. If a document has multiple parts, You should download all, before extracting.
Good luck. Repair on Your own risk. Make sure You know what You are doing.

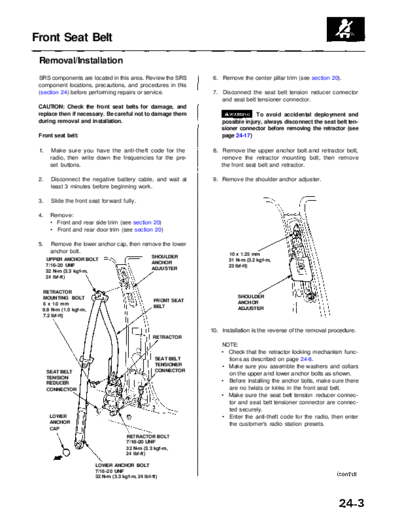

Image preview - the first page of the document
RL9604S24003A


>> Download RL9604S24003A documenatation <<

Text preview - extract from the document
                Main Menu                    Table of Contents


Front Seat Belt
 Removal/Installation
 SRS components are located in this area. Review the SRS          6. Remove the center pillar trim (see section 20).
 component locations, precautions, and procedures in this
 (section 24) before performing repairs or service.               7. Disconnect the seat belt tension reducer connector
                                                                     and seat belt tensioner connector.
 CAUTION: Check the front seat belts for damage, and
 replace then if necessary. Be careful not to damage them                         To avoid accidental deployment and
 during removal and installation.                                    possible injury, always disconnect the seat belt ten-
                                                                     sioner connector before removing the retractor (see
 Front seat belt:                                                    page 24-17)

 1.    Make sure you have the anti-theft code for the             8. Remove the upper anchor bolt and retractor bolt,
       radio, then write down the frequencies for the pre-           remove the retractor mounting bolt, then remove
       set buttons.                                                  the front seat belt and retractor.

 2.    Disconnect the negative battery cable, and wait at         9. Remove the shoulder anchor adjuster.
       least 3 minutes before beginning work.

 3.    Slide the front seat forward fully.

 4.    Remove:
