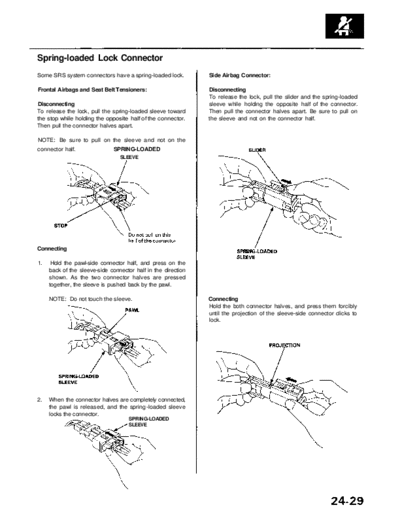

Image preview - the first page of the document



>> Download RL9604S24029A documenatation <<

Text preview - extract from the document

               Main Menu                  Table of Contents




Spring-loaded Lock Connector
Some SRS system connectors have a spring-loaded lock.          Side Airbag Connector:

Frontal Airbags and Seat Belt Tensioners:                      Disconnecting
                                                               To release the lock, pull the slider and the spring-loaded
Disconnecting                                                  sleeve while holding the opposite half of the connector.
To release the lock, pull the spring-loaded sleeve toward      Then pull the connector halves apart. Be sure to pull on
the stop while holding the opposite half of the connector.     the sleeve and not on the connector half.
Then pull the connector halves apart.

NOTE: Be sure to pull on the sleeve and not on the
connector half.               SPRING-LOADED
                                 SLEEVE




Connecting

1.    Hold the pawl-side connector half, and press on the
     back of the sleeve-side connector half in the direction
     shown. As the two connector halves are pressed
     together, the sleeve is pushed back by the pawl.

     NOTE: Do not touch the sleeve.                            Connecting
                                                               Hold the both connector halves, and press them forcibly
                                                               until the projection of the sleeve-side connector clicks to
                                                               lock.




2.   When the connector halves are completely connected,
     the pawl is released, and the spring-loaded sleeve
     locks the connector.
                                     SPRING-LOADED
                                     SLEEVE
