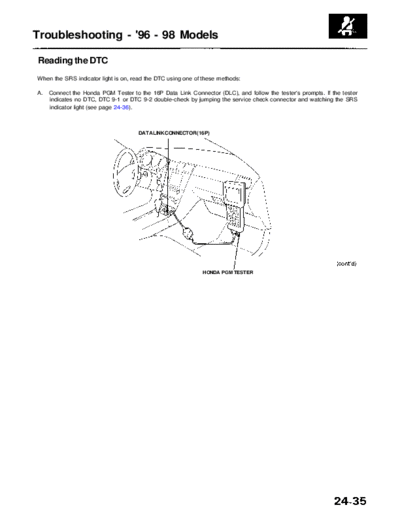

Image preview - the first page of the document



>> Download RL9604S24035B documenatation <<

Text preview - extract from the document

              Main Menu               Table of Contents


Troubleshooting - '96 - 98 Models

Reading the DTC
When the SRS indicator light is on, read the DTC using one of these methods:

A.   Connect the Honda PGM Tester to the 16P Data Link Connector (DLC), and follow the tester's prompts. If the tester
     indicates no DTC, DTC 9-1 or DTC 9-2 double-check by jumping the service check connector and watching the SRS
     indicator light (see page 24-36).



                                     DATA LINK CONNECTOR (16P)




                                                             HONDA PGM TESTER
              Main Menu                  Table of Contents


Troubleshooting - '96 - 98 Models
 Reading the DTC (cont'd)
 B. The SRS indicator light can also indicate the DTC by the number of blinks when the SCS service connector is connect-
    ed to the service check connector (2P).

 1.   Turn the ignition switch OFF, and wait for 10 seconds. Then connect the SCS service connector to the service check
      connector (2P). If you do not wait 10 seconds, the SRS unit will not be completely reset and will not output DTCs.




                                                                                               SCS SERVICE CONNECTOR
                                                                                               07PAZ-0010100
 2.   Turn the ignition switch ON (II). The SRS indicator light comes on for about 6 seconds and goes off. Then it will indi-
      cate the DTC:
      -- The DTC consists of a main code and a sub-code.
      -- Including the most recent problem, up to three different malfunctions can be indicated.
      -- In case of a continuous failure, the DTC will be indicated repeatedly (see example 1 below).
      -- In case of an intermittent failure, the SRS indicator light will indicate the DTC one time, then it will stay on (see exam-
         ple 2 below).
      -- If both a continuous and an intermittent failure occur, both DTCs will be indicated as continuous failures.
      -- In case the system is normal (no DTC), the SRS indicator light will stay on (see example 3).
 3.   Read the DTC.
 4.   Turn the ignition switch OFF, and wait for 10 seconds. Then disconnect the SCS service connector from the service
      check connector (2P).

 Examples of DTC Indications:

 1.   Continuous failure, SRS Indicator Light is:
