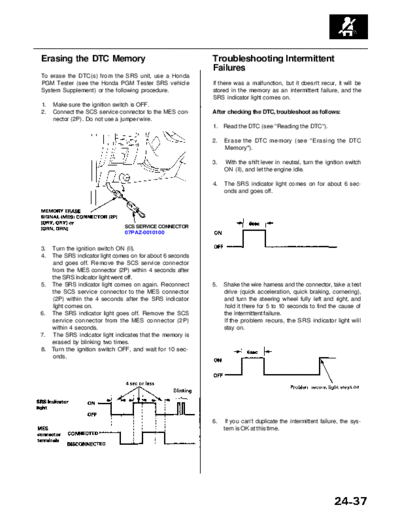

Image preview - the first page of the document
>> Download RL9604S24037A documenatation <<Text preview - extract from the document Main Menu Table of Contents
Erasing the DTC Memory Troubleshooting Intermittent
Failures
To erase the DTC(s) from the SRS unit, use a Honda
PGM Tester (see the Honda PGM Tester SRS vehicle If there was a malfunction, but it doesn't recur, it will be
System Supplement) or the following procedure. stored in the memory as an intermittent failure, and the
SRS indicator light comes on.
1. Make sure the ignition switch is OFF.
2. Connect the SCS service connector to the MES con- After checking the DTC, troubleshoot as follows:
nector (2P). Do not use a jumper wire.
1. Read the DTC (see "Reading the DTC").
2. Erase the DTC memory (see "Erasing the DTC
Memory").
3. With the shift lever in neutral, turn the ignition switch
ON (II), and let the engine idle.
4. The SRS indicator light comes on for about 6 sec-
onds and goes off.
SCS SERVICE CONNECTOR
07PAZ-0010100
3. Turn the ignition switch ON (II).
4. The SRS indicator light comes on for about 6 seconds
and goes off. Remove the SCS service connector
from the MES connector (2P) within 4 seconds after
the SRS indicator light went off.
5. The SRS indicator light comes on again. Reconnect 5. Shake the wire harness and the connector, take a test
the SCS service connector to the MES connector drive (quick acceleration, quick braking, cornering),
(2P) within the 4 seconds after the SRS indicator and turn the steering wheel fully left and right, and
light comes on. hold it there for 5 to 10 seconds to find the cause of
6. The SRS indicator light goes off. Remove the SCS the intermittent failure.
service connector from the MES connector (2P) If the problem recurs, the SRS indicator light will
within 4 seconds. stay on.
7. The SRS indicator light indicates that the memory is
erased by blinking two times.
8. Turn the ignition switch OFF, and wait for 10 sec-
onds.
6. If you can't duplicate the intermittent failure, the sys-
tem is OK at this time.
