Main Menu Table of Contents

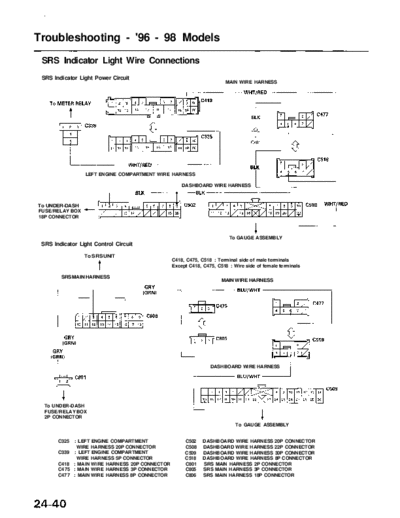

Troubleshooting - '96 - 98 Models
SRS Indicator Light Wire Connections
SRS Indicator Light Power Circuit
MAIN WIRE HARNESS
LEFT ENGINE COMPARTMENT WIRE HARNESS
DASHBOARD WIRE HARNESS
To UNDER-DASH
FUSE/RELAY BOX
18P CONNECTOR
To GAUGE ASSEMBLY
SRS Indicator Light Control Circuit
To SRS UNIT
C418, C475, C518 : Terminal side of male terminals
Except C418, C475, C518 : Wire side of female terminals
SRS MAIN HARNESS
MAIN WIRE HARNESS
DASHBOARD WIRE HARNESS
To UNDER-DASH
FUSE/RELAY BOX
2P CONNECTOR
To GAUGE ASSEMBLY
C325 : LEFT ENGINE COMPARTMENT C502 DASHBOARD WIRE HARNESS 20P CONNECTOR
WIRE HARNESS 20P CONNECTOR C508 DASHBOARD WIRE HARNESS 22P CONNECTOR
C339 : LEFT ENGINE COMPARTMENT C509 DASHBOARD WIRE HARNESS 30P CONNECTOR
WIRE HARNESS 5P CONNECTOR C518 DASHBOARD WIRE HARNESS 8P CONNECTOR
C418 : MAIN WIRE HARNESS 20P CONNECTOR C801 SRS MAIN HARNESS 2P CONNECTOR
C475 : MAIN WIRE HARNESS 3P CONNECTOR C805 SRS MAIN HARNESS 3P CONNECTOR
C477 : MAIN WIRE HARNESS 8P CONNECTOR C806 SRS MAIN HARNESS 18P CONNECTOR
