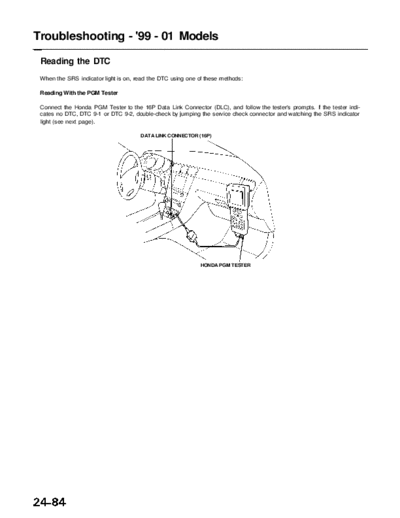

Image preview - the first page of the document



>> Download RL9604S24084B documenatation <<

Text preview - extract from the document

              Main Menu                Table of Contents


Troubleshooting - '99 - 01 Models

 Reading the DTC
 When the SRS indicator light is on, read the DTC using one of these methods:

 Reading With the PGM Tester

 Connect the Honda PGM Tester to the 16P Data Link Connector (DLC), and follow the tester's prompts. If the tester indi-
 cates no DTC, DTC 9-1 or DTC 9-2, double-check by jumping the service check connector and watching the SRS indicator
 light (see next page).

                                      DATA LINK CONNECTOR (16P)




                                                             HONDA PGM TESTER
              Main Menu               Table of Contents




Reading the SRS Indicator Light                           Patterns of the DTC Indications:

The SRS indicator light indicates the DTC by the number   The DTC consists of a main code and sub-code.
of blinks when the SCS short connector is connected to
the service check connector (2P).

1.   Turn the ignition switch OFF, and wait for 10 sec-
     onds. Then connect the SCS short connector to the
     service check connector (2P). If you don't wait 10
     seconds, the SRS unit won't be completely reset or
     output DTCs.




                                                            The indicator's blink is regarded first four continuous
                                                            blinks as count ten, then after blink is added to them.




                                  SCS SHORT CONNECTOR
                                  07PAZ-0010100




2. Turn the ignition switch ON (II). The SRS indicator    Reading the sub code:
   light comes on for about 6 seconds, and then goes        Count the number of the blinks.
   off. Then it will indicate the DTC.

3.   Read the DTC.

4.   Turn the ignition switch OFF, and wait for 10 sec-
     onds. Then disconnect the SCS short connector
     from the service check connector (2P).



                                                             In case of main code is '3', sub code is '4', record a
                                                             DTC 3-4.
              Main Menu                   Table of Contents


Troubleshooting - '99 - 01 Models
 Reading the DTC (cont'd)
 -- Including the most recent problem, up to 3 different malfunctions can be indicated (see example 1 below).
 -- In case of a continuous failure, the DTC will be indicated repeatedly (see example 1 below).
 -- In case of an intermittent failure, the SRS indicator light will indicate the DTC one time, then it will stay on (see example
    2 below).
 -- If both a continuous and an intermittent failure occur, both DTCs will be indicated as continuous failures.
 -- When the system is normal (no DTC), the SRS indicator light will stay on (see example 3).
 -- If the SRS indicator light comes on continuously without any DTCs, there may be a problem in the light circuit.

 Examples of the DTC Indications:

 1. Continuous failure, SRS Indicator Light is:




 2. Intermittent failure, SRS Indicator Light is:




 3. Normal (no failure), SRS Indicator Light is:
