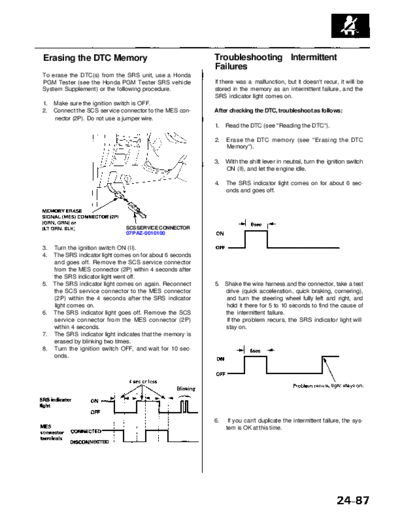

            Main Menu               Table of Contents




Erasing the DTC Memory                                    Troubleshooting Intermittent
                                                          Failures
To erase the DTC(s) from the SRS unit, use a Honda
PGM Tester (see the Honda PGM Tester SRS vehicle          If there was a malfunction, but it doesn't recur, it will be
System Supplement) or the following procedure.            stored in the memory as an intermittent failure, and the
                                                          SRS indicator light comes on.
1.   Make sure the ignition switch is OFF.
2.   Connect the SCS service connector to the MES con-    After checking the DTC, troubleshoot as follows:
     nector (2P). Do not use a jumper wire.
                                                          1. Read the DTC (see "Reading the DTC").

                                                          2.   Erase the DTC memory (see "Erasing the DTC
                                                               Memory").

                                                          3.   With the shift lever in neutral, turn the ignition switch
                                                               ON (II), and let the engine idle.

                                                          4.   The SRS indicator light comes on for about 6 sec-
                                                               onds and goes off.




                              SCS SERVICE CONNECTOR
                              07PAZ-0010100

3. Turn the ignition switch ON (II).
4. The SRS indicator light comes on for about 6 seconds
   and goes off. Remove the SCS service connector
   from the MES connector (2P) within 4 seconds after
   the SRS indicator light went off.
5. The SRS indicator light comes on again. Reconnect      5. Shake the wire harness and the connector, take a test
   the SCS service connector to the MES connector            drive (quick acceleration, quick braking, cornering),
   (2P) within the 4 seconds after the SRS indicator         and turn the steering wheel fully left and right, and
   light comes on.                                           hold it there for 5 to 10 seconds to find the cause of
6. The SRS indicator light goes off. Remove the SCS          the intermittent failure.
   service connector from the MES connector (2P)             If the problem recurs, the SRS indicator light will
   within 4 seconds.                                         stay on.
7. The SRS indicator light indicates that the memory is
   erased by blinking two times.
8. Turn the ignition switch OFF, and wait for 10 sec-
   onds.




                                                          6.    If you can't duplicate the intermittent failure, the sys-
                                                               tem is OK at this time.
