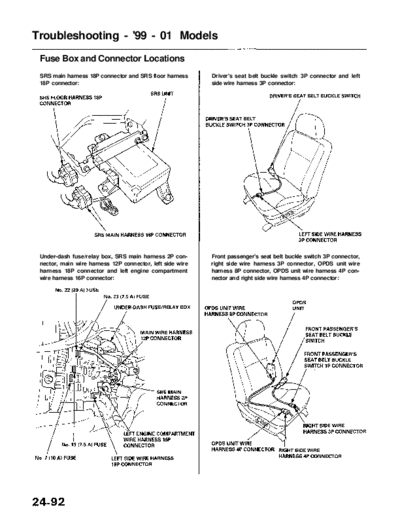

Image preview - the first page of the document
>> Download RL9604S24092A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Troubleshooting - '99 - 01 Models
Fuse Box and Connector Locations
SRS main harness 18P connector and SRS floor harness Driver's seat belt buckle switch 3P connector and left
18P connector: side wire harness 3P connector:
Under-dash fuse/relay box, SRS main harness 2P con- Front passenger's seat belt buckle switch 3P connector,
nector, main wire harness 12P connector, left side wire right side wire harness 3P connector, OPDS unit wire
harness 18P connector and left engine compartment harness 8P connector, OPDS unit wire harness 4P con-
wire harness 16P connector: nector and right side wire harness 4P connector:
Main Menu Table of Contents
Left side wire harness 14P connector, main wire harness Dashboard wire harness 30P connector and dashboard
14P connector, dashboard wire harness 16P connector, wire harness 22P connector:
left side wire harness 16P connector, main wire harness
20P connector and left engine compartment wire harness
20P connector.
Dashboard wire harness 8P connector, main wire har-
ness 8P connector and SRS main harness 8P connector.
Left side wire harness 2P connector and SRS floor har-
ness 2P connector.
Main Menu Table of Contents
Troubleshooting - '99 - 01 Models
Fuse Box and Connector Locations (cont'd)
Driver's airbag 2P connector and cable reel 2P connector: Cable reel 2P connector and SRS main harness 2P
connector:
Connecting the Special tool to the SRS main harness 2P
connector:
Connecting the special tool to the cable reel 2P connector:
07TAZ-SZ5011A
07TAZ-SZ5011A 07SAZ-TB4011A
07SAZ-TB4011A
Main Menu Table of Contents
Front passenger's airbag 4P connector and SRS main Driver's seat belt tensioner 2P connector and left side
harness 4P connector: wire harness 2P connector (left side) or
Front passenger's seat belt tensioner 2P connector and
right side wire harness 2P connector (right side):
NOTE: Left side is shown.
Connecting the special tool to the SRS main harness 4P
connector:
Connecting the special tool to the left side wire harness
2P (or right side wire harness 2P) connector:
07TAZ-SZ5011A
07XAZ - SZ30100 07SAZ-TB4011A
07SAZ-TB4011A
Main Menu Table of Contents
Troubleshooting - '99 - 01 Models
Fuse Box and Connector Locations (cont'd)
Left side wire harness 2P connector and SRS floor har- Driver's side airbag 2P connector and SRS floor harness
ness 2P connector (left side) or 2P connector (left side) or
Right side wire harness 2P connector and SRS floor har- Front passenger's side airbag 2P connector and SRS
ness 2P connector (right side): floor harness 2P connector (right side):
NOTE: Left side is shown.
Connecting the special tool to the SRS floor harness 2P
connector:
Connecting the special tool to the SRS floor harness 2P
connector:
07XAZ-S1A0200
07SAZ-TB4011A
07XAZ-S1A0200
07SAZ-TB4011A
Main Menu Table of Contents
SRS floor harness 4P connector (left side) or Right side wire harness 24P connector and main wire
SRS floor harness 4P connector (right side): harness 24P connector:
NOTE: Right side is shown.
Connecting the special tool to the SRS floor harness 4P
connector:
SRS TEST BOX
4P
07XAZ-S1A0100
