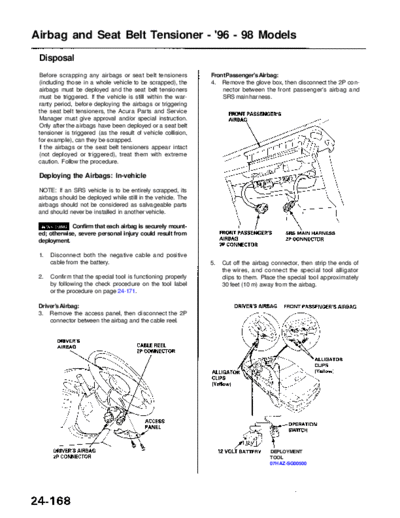

Text preview - extract from the document

               Main Menu                 Table of Contents


Airbag and Seat Belt Tensioner - '96 - 98 Models

 Disposal
 Before scrapping any airbags or seat belt tensioners          Front Passenger's Airbag:
 (including those in a whole vehicle to be scrapped), the      4. Remove the glove box, then disconnect the 2P con-
 airbags must be deployed and the seat belt tensioners             nector between the front passenger's airbag and
 must be triggered. If the vehicle is still within the war-        SRS main harness.
 ranty period, before deploying the airbags or triggering
 the seat belt tensioners, the Acura Parts and Service
 Manager must give approval and/or special instruction.
 Only after the airbags have been deployed or a seat belt
 tensioner is triggered (as the result of vehicle collision,
 for example), can they be scrapped.
 If the airbags or the seat belt tensioners appear intact
 (not deployed or triggered), treat them with extreme
 caution. Follow the procedure.

 Deploying the Airbags: In-vehicle

 NOTE: If an SRS vehicle is to be entirely scrapped, its
 airbags should be deployed while still in the vehicle. The
 airbags should not be considered as salvageable parts
 and should never be installed in another vehicle.

             Confirm that each airbag is securely mount-
 ed; otherwise, severe personal injury could result from
 deployment.

 1.   Disconnect both the negative cable and positive
      cable from the battery.                                  5.   Cut off the airbag connector, then strip the ends of
                                                                    the wires, and connect the special tool alligator
 2.   Confirm that the special tool is functioning properly         clips to them. Place the special tool approximately
      by following the check procedure on the tool label            30 feet (10 m) away from the airbag.
      or the procedure on page 24-171.

 Driver's Airbag:
 3. Remove the access panel, then disconnect the 2P
     connector between the airbag and the cable reel.




                                                                                      DEPLOYMENT
                                                                                      TOOL
                                                                                      07HAZ-SG00500
               Main Menu                 Table of Contents




6.   Connect a 12 volt battery to the tool:                   Triggering the Seat Belt Tensioners:
