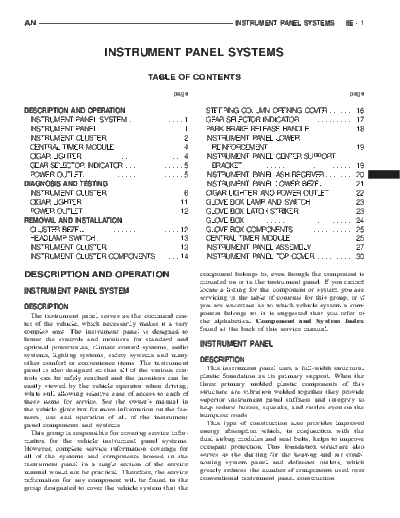

Image preview - the first page of the document
>> Download 00AN_8E documenatation <<
Text preview - extract from the document
AN INSTRUMENT PANEL SYSTEMS 8E - 1
INSTRUMENT PANEL SYSTEMS
TABLE OF CONTENTS
page page
DESCRIPTION AND OPERATION STEERING COLUMN OPENING COVER . . . . . . . 16
INSTRUMENT PANEL SYSTEM . . . . . . . . . . . . . . 1 GEAR SELECTOR INDICATOR . . . . . . . . . . . . . . 17
INSTRUMENT PANEL . . . . . . . . . . . . . . . . . . . . . . 1 PARK BRAKE RELEASE HANDLE . . . . . . . . . . . . 18
INSTRUMENT CLUSTER. . . . . . . . . . . . . . . . . . . . 2 INSTRUMENT PANEL LOWER
CENTRAL TIMER MODULE . . . . . . . . . . . . . . . . . 4 REINFORCEMENT . . . . . . . . . . . . . . . . . . . . . . 19
CIGAR LIGHTER . . . . . . . . . . . . . . . . . . . . . . . . . . 4 INSTRUMENT PANEL CENTER SUPPORT
GEAR SELECTOR INDICATOR . . . . . . . . . . . . . . . 5 BRACKET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
POWER OUTLET. . . . . . . . . . . . . . . . . . . . . . . . . . 5 INSTRUMENT PANEL ASH RECEIVER . . . . . . . . 20
DIAGNOSIS AND TESTING INSTRUMENT PANEL LOWER BEZEL . . . . . . . . 21
INSTRUMENT CLUSTER. . . . . . . . . . . . . . . . . . . . 6 CIGAR LIGHTER AND POWER OUTLET. . . . . . . 22
CIGAR LIGHTER . . . . . . . . . . . . . . . . . . . . . . . . . 11 GLOVE BOX LAMP AND SWITCH . . . . . . . . . . . 23
POWER OUTLET. . . . . . . . . . . . . . . . . . . . . . . . . 12 GLOVE BOX LATCH STRIKER . . . . . . . . . . . . . . 23
REMOVAL AND INSTALLATION GLOVE BOX . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
CLUSTER BEZEL. . . . . . . . . . . . . . . . . . . . . . . . . 12 GLOVE BOX COMPONENTS . . . . . . . . . . . . . . . . 25
HEADLAMP SWITCH . . . . . . . . . . . . . . . . . . . . . 13 CENTRAL TIMER MODULE . . . . . . . . . . . . . . . . 25
INSTRUMENT CLUSTER. . . . . . . . . . . . . . . . . . . 13 INSTRUMENT PANEL ASSEMBLY . . . . . . . . . . . 27
INSTRUMENT CLUSTER COMPONENTS . . . . . . 14 INSTRUMENT PANEL TOP COVER. . . . . . . . . . . 30
DESCRIPTION AND OPERATION component belongs to, even though the component is
mounted on or in the instrument panel. If you cannot
INSTRUMENT PANEL SYSTEM locate a listing for the component or system you are
servicing in the table of contents for this group, or if
DESCRIPTION you are uncertain as to which vehicle system a com-
The instrument panel serves as the command cen- ponent belongs to, it is suggested that you refer to
ter of the vehicle, which necessarily makes it a very the alphabetical Component and System Index
complex unit. The instrument panel is designed to found at the back of this service manual.
house the controls and monitors for standard and
optional powertrains, climate control systems, audio INSTRUMENT PANEL
systems, lighting systems, safety systems and many
other comfort or convenience items. The instrument DESCRIPTION
panel is also designed so that all of the various con- This instrument panel uses a full-width structural
trols can be safely reached and the monitors can be plastic foundation as its primary support. When the
easily viewed by the vehicle operator when driving, three primary molded plastic components of this
while still allowing relative ease of access to each of structure are vibration welded together they provide
these items for service. See the owner's manual in superior instrument panel stiffness and integrity to
the vehicle glove box for more information on the fea- help reduce buzzes, squeaks, and rattles even on the
tures, use and operation of all of the instrument bumpiest roads.
panel components and systems. This type of construction also provides improved
This group is responsible for covering service infor- energy absorption which, in conjunction with the
mation for the vehicle instrument panel systems. dual airbag modules and seat belts, helps to improve
However, complete service information coverage for occupant protection. This foundation structure also
all of the systems and components housed in the serves as the ducting for the heating and air condi-
instrument panel in a single section of the service tioning system panel and defroster outlets, which
manual would not be practical. Therefore, the service greatly reduces the number of components used over
information for any component will be found in the conventional instrument panel construction.
group designated to cover the vehicle system that the
8E - 2 INSTRUMENT PANEL SYSTEMS AN
DESCRIPTION AND OPERATION (Continued)
Modular instrument panel construction allows all ◦ Jabse Service Manual Search 2025 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
