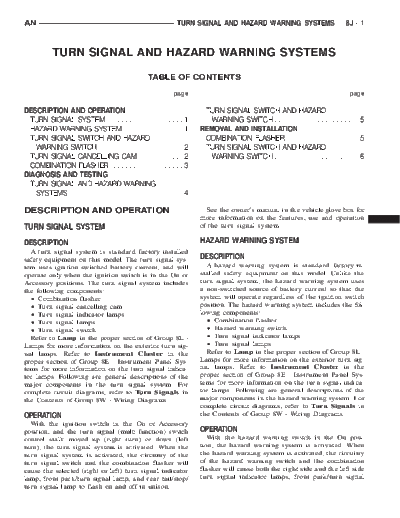

Image preview - the first page of the document
>> Download 00AN_8J documenatation <<
Text preview - extract from the document
AN TURN SIGNAL AND HAZARD WARNING SYSTEMS 8J - 1
TURN SIGNAL AND HAZARD WARNING SYSTEMS
TABLE OF CONTENTS
page page
DESCRIPTION AND OPERATION TURN SIGNAL SWITCH AND HAZARD
TURN SIGNAL SYSTEM . . . . . . . . . . . . . . . . . . . . 1 WARNING SWITCH . . . . . . . . . . . . . . . . . . . . . . 5
HAZARD WARNING SYSTEM. . . . . . . . . . . . . . . . 1 REMOVAL AND INSTALLATION
TURN SIGNAL SWITCH AND HAZARD COMBINATION FLASHER . . . . . . . . . . . . . . . . . . . 5
WARNING SWITCH . . . . . . . . . . . . . . . . . . . . . . 2 TURN SIGNAL SWITCH AND HAZARD
TURN SIGNAL CANCELLING CAM . . . . . . . . . . . . 2 WARNING SWITCH . . . . . . . . . . . . . . . . . . . . . . 6
COMBINATION FLASHER . . . . . . . . . . . . . . . . . . . 3
DIAGNOSIS AND TESTING
TURN SIGNAL AND HAZARD WARNING
SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
DESCRIPTION AND OPERATION See the owner's manual in the vehicle glove box for
more information on the features, use and operation
TURN SIGNAL SYSTEM of the turn signal system.
DESCRIPTION HAZARD WARNING SYSTEM
A turn signal system is standard factory-installed
safety equipment on this model. The turn signal sys- DESCRIPTION
tem uses ignition switched battery current, and will A hazard warning system is standard factory-in-
operate only when the ignition switch is in the On or stalled safety equipment on this model. Unlike the
Accessory positions. The turn signal system includes turn signal system, the hazard warning system uses
the following components: a non-switched source of battery current so that the
