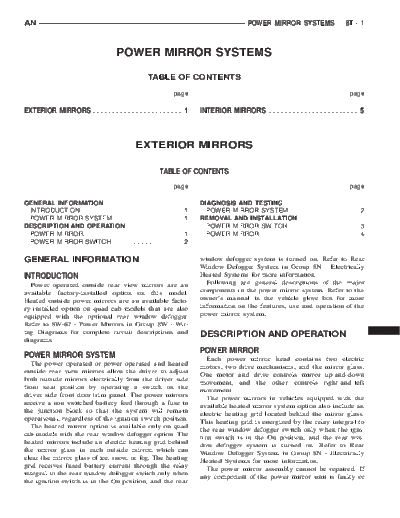

Image preview - the first page of the document
00AN_8T


>> Download 00AN_8T documenatation <<

Text preview - extract from the document
AN                                                                                    POWER MIRROR SYSTEMS                    8T - 1



                                   POWER MIRROR SYSTEMS
                                                TABLE OF CONTENTS

                                                          page                                                                  page

EXTERIOR MIRRORS . . . . . . . . . . . . . . . . . . . . . . . 1   INTERIOR MIRRORS . . . . . . . . . . . . . . . . . . . . . . . 5



                                           EXTERIOR MIRRORS

                                                    TABLE OF CONTENTS
                                                          page                                                                  page

GENERAL INFORMATION                                                DIAGNOSIS AND TESTING
 INTRODUCTION . . . . . . . . . . . .    ..............1             POWER MIRROR SYSTEM . . . . . . . . . . . . . . . . . . 2
 POWER MIRROR SYSTEM . . . .             ..............1           REMOVAL AND INSTALLATION
DESCRIPTION AND OPERATION                                            POWER MIRROR SWITCH . . . . . . . . . . . . . . . . . . 3
 POWER MIRROR. . . . . . . . . . . .     ..............1             POWER MIRROR. . . . . . . . . . . . . . . . . . . . . . . . . . 4
 POWER MIRROR SWITCH . . . .             ..............2

GENERAL INFORMATION                                                window defogger system is turned on. Refer to Rear
                                                                   Window Defogger System in Group 8N - Electrically
INTRODUCTION                                                       Heated Systems for more information.
  Power operated outside rear view mirrors are an                    Following are general descriptions of the major
available factory-installed option on this model.                  components in the power mirror system. Refer to the
Heated outside power mirrors are an available facto-               owner's manual in the vehicle glove box for more
ry-installed option on quad cab models that are also               information on the features, use and operation of the
equipped with the optional rear window defogger.                   power mirror system.
Refer to 8W-62 - Power Mirrors in Group 8W - Wir-
ing Diagrams for complete circuit descriptions and                 DESCRIPTION AND OPERATION
diagrams.
                                                                   POWER MIRROR
POWER MIRROR SYSTEM                                                   Each power mirror head contains two electric
   The power operated or power operated and heated
                                                                   motors, two drive mechanisms, and the mirror glass.
outside rear view mirrors allow the driver to adjust
                                                                   One motor and drive controls mirror up-and-down
both outside mirrors electrically from the driver side
                                                                   movement, and the other controls right-and-left
front seat position by operating a switch on the
                                                                   movement.
driver side front door trim panel. The power mirrors
                                                                      The power mirrors in vehicles equipped with the
receive a non-switched battery feed through a fuse in
                                                                   available heated mirror system option also include an
the junction block so that the system will remain
                                                                   electric heating grid located behind the mirror glass.
operational, regardless of the ignition switch position.
                                                                   This heating grid is energized by the relay integral to
   The heated mirror option is available only on quad
                                                                   the rear window defogger switch only when the igni-
cab models with the rear window defogger option. The
                                                                   tion switch is in the On position, and the rear win-
heated mirrors include an electric heating grid behind
                                                                   dow defogger system is turned on. Refer to Rear
the mirror glass in each outside mirror, which can
                                                                   Window Defogger System in Group 8N - Electrically
clear the mirror glass of ice, snow, or fog. The heating
                                                                   Heated Systems for more information.
grid receives fused battery current through the relay
                                                                      The power mirror assembly cannot be repaired. If
integral to the rear window defogger switch only when
                                                                   any component of the power mirror unit is faulty or
the ignition switch is in the On position, and the rear
8T - 2    POWER MIRROR SYSTEMS                                                                             AN
DESCRIPTION AND OPERATION (Continued)
damaged, the entire power mirror unit must be             ground. If OK, go to Step 6. If not OK, repair the
replaced.                                                 open circuit to ground as required.
                                                            (6) Connect the battery negative cable. Turn the
POWER MIRROR SWITCH                                       ignition switch to the On position. Turn on the rear
  Both the right and left power outside mirrors are       window defogger system. Check for battery voltage at
controlled by a single multi-function switch unit         the rear window defogger relay output circuit cavity
located on and mounted to the upper flag area of the      in the body half of the power mirror wire harness
driver side door trim panel. The switch knob is           connector. If OK, go to Step 7. If not OK, repair the
rotated clockwise (right mirror control), or counter-     open circuit to the rear window defogger relay as
clockwise (left mirror control) to select the mirror to   required.
be adjusted. The switch knob is then moved in a joy-        (7) Check for continuity between the ground cir-
stick fashion to control movement of the selected mir-    cuit and the rear window defogger relay output cir-
ror up, down, right, or left.                             cuit cavities in the mirror half of the power mirror
  The power mirror switch cannot be repaired and, if      wire harness connector. There should be continuity. If
faulty or damaged, it must be replaced. The power         not OK, replace the faulty power mirror. If OK, check
mirror switch knob is available for service replace-      the resistance through the electric heating grid cir-
ment.                                                     cuit (Fig. 1). Correct resistance through the electric
                                                          heating grid should be from 6 to 8.2 ohms when mea-
                                                          sured at an ambient temperature of 21
