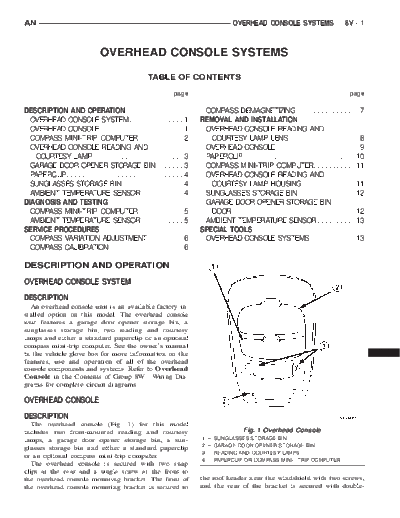

Image preview - the first page of the document
>> Download 00AN_8V documenatation <<Text preview - extract from the documentAN OVERHEAD CONSOLE SYSTEMS 8V - 1
OVERHEAD CONSOLE SYSTEMS
TABLE OF CONTENTS
page page
DESCRIPTION AND OPERATION COMPASS DEMAGNETIZING . . . . . . . . . . . . . . . . 7
OVERHEAD CONSOLE SYSTEM . . . . . . . . . . . . . . 1 REMOVAL AND INSTALLATION
OVERHEAD CONSOLE . . . . . . . . . . . . . . . . . . . . . 1 OVERHEAD CONSOLE READING AND
COMPASS MINI-TRIP COMPUTER. . . . . . . . . . . . 2 COURTESY LAMP LENS . . . . . . . . . . . . . . . . . . 8
OVERHEAD CONSOLE READING AND OVERHEAD CONSOLE . . . . . . . . . . . . . . . . . . . . . 9
COURTESY LAMP . . . . . . . . . . . . . . . . . . . . . . . 3 PAPERCLIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
GARAGE DOOR OPENER STORAGE BIN . . . . . . . 3 COMPASS MINI-TRIP COMPUTER. . . . . . . . . . . 11
PAPERCLIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 OVERHEAD CONSOLE READING AND
SUNGLASSES STORAGE BIN. . . . . . . . . . . . . . . . 4 COURTESY LAMP HOUSING. . . . . . . . . . . . . . 11
AMBIENT TEMPERATURE SENSOR . . . . . . . . . . . 4 SUNGLASSES STORAGE BIN. . . . . . . . . . . . . . . 12
DIAGNOSIS AND TESTING GARAGE DOOR OPENER STORAGE BIN
COMPASS MINI-TRIP COMPUTER. . . . . . . . . . . . 5 DOOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
AMBIENT TEMPERATURE SENSOR . . . . . . . . . . . 5 AMBIENT TEMPERATURE SENSOR . . . . . . . . . . 13
SERVICE PROCEDURES SPECIAL TOOLS
COMPASS VARIATION ADJUSTMENT . . . . . . . . . 6 OVERHEAD CONSOLE SYSTEMS. . . . . . . . . . . . 13
COMPASS CALIBRATION . . . . . . . . . . . . . . . . . . . 6
DESCRIPTION AND OPERATION
OVERHEAD CONSOLE SYSTEM
DESCRIPTION
An overhead console unit is an available factory-in-
stalled option on this model. The overhead console
unit features a garage door opener storage bin, a
sunglasses storage bin, two reading and courtesy
lamps and either a standard paperclip or an optional
compass mini-trip computer. See the owner's manual
in the vehicle glove box for more information on the
features, use and operation of all of the overhead
console components and systems. Refer to Overhead
Console in the Contents of Group 8W - Wiring Dia-
grams for complete circuit diagrams.
OVERHEAD CONSOLE
DESCRIPTION
The overhead console (Fig. 1) for this model
includes two front-mounted reading and courtesy Fig. 1 Overhead Console
lamps, a garage door opener storage bin, a sun- 1
