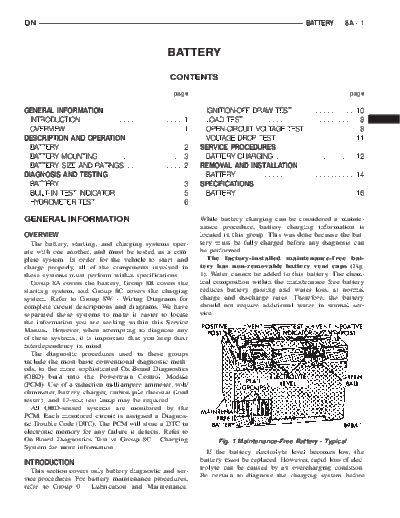

Image preview - the first page of the document
98DN_8A


>> Download 98DN_8A documenatation <<

Text preview - extract from the document
DN                                                                                                                         BATTERY          8A - 1



                                                                BATTERY
                                                                  CONTENTS

                                                                   page                                                                       page

GENERAL INFORMATION                                                            IGNITION-OFF DRAW TEST . . . . . . . . . . . . . . . 10
  INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . .          1    LOAD TEST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
  OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . .      1    OPEN-CIRCUIT VOLTAGE TEST . . . . . . . . . . . . . 8
DESCRIPTION AND OPERATION                                                      VOLTAGE DROP TEST . . . . . . . . . . . . . . . . . . . 11
  BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2   SERVICE PROCEDURES
  BATTERY MOUNTING . . . . . . . . . . . . . . . . . . . . .              3    BATTERY CHARGING . . . . . . . . . . . . . . . . . . . . 12
  BATTERY SIZE AND RATINGS . . . . . . . . . . . . . .                    2   REMOVAL AND INSTALLATION
DIAGNOSIS AND TESTING                                                          BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
  BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   3   SPECIFICATIONS
  BUILT-IN TEST INDICATOR . . . . . . . . . . . . . . . .                 5    BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
  HYDROMETER TEST . . . . . . . . . . . . . . . . . . . . .               6

GENERAL INFORMATION                                                           While battery charging can be considered a mainte-
                                                                              nance procedure, battery charging information is
OVERVIEW                                                                      located in this group. This was done because the bat-
   The battery, starting, and charging systems oper-                          tery must be fully-charged before any diagnosis can
ate with one another, and must be tested as a com-                            be performed.
plete system. In order for the vehicle to start and                             The factory-installed maintenance-free bat-
charge properly, all of the components involved in                            tery has non-removable battery vent caps (Fig.
these systems must perform within specifications.                             1). Water cannot be added to this battery. The chem-
   Group 8A covers the battery, Group 8B covers the                           ical composition within the maintenance-free battery
starting system, and Group 8C covers the charging                             reduces battery gassing and water loss, at normal
system. Refer to Group 8W - Wiring Diagrams for                               charge and discharge rates. Therefore, the battery
complete circuit descriptions and diagrams. We have                           should not require additional water in normal ser-
separated these systems to make it easier to locate                           vice.
the information you are seeking within this Service
Manual. However, when attempting to diagnose any
of these systems, it is important that you keep their
interdependency in mind.
   The diagnostic procedures used in these groups
include the most basic conventional diagnostic meth-
ods, to the more sophisticated On-Board Diagnostics
(OBD) built into the Powertrain Control Module
(PCM). Use of a induction milliampere ammeter, volt/
ohmmeter, battery charger, carbon pile rheostat (load
tester), and 12-volt test lamp may be required.
   All OBD-sensed systems are monitored by the
PCM. Each monitored circuit is assigned a Diagnos-
tic Trouble Code (DTC). The PCM will store a DTC in
electronic memory for any failure it detects. Refer to
On-Board Diagnostics Test in Group 8C - Charging                                     Fig. 1 Maintenance-Free Battery - Typical
System for more information.
                                                                                If the battery electrolyte level becomes low, the
INTRODUCTION                                                                  battery must be replaced. However, rapid loss of elec-
                                                                              trolyte can be caused by an overcharging condition.
  This section covers only battery diagnostic and ser-
                                                                              Be certain to diagnose the charging system before
vice procedures. For battery maintenance procedures,
refer to Group 0 - Lubrication and Maintenance.
8A - 2    BATTERY                                                                                             DN
GENERAL INFORMATION (Continued)
returning the vehicle to service. Refer to Group 8C -        For a battery to remain useful, it must be able to
Charging System for more information.                      produce high-amperage current over an extended
  The factory-installed battery also has a built-in        period. A battery must also be able to accept a
test indicator (hydrometer). The color visible in the      charge, so that its voltage potential may be restored.
sight glass of the indicator will reveal the battery         In addition to producing and storing electrical
condition. See Built-In Test Indicator in the Diagno-      energy, the battery serves as a capacitor, or voltage
sis and Testing section of this group for more infor-      stabilizer, for the electrical system of the vehicle. It
mation.                                                    absorbs most abnormal or transient voltages caused
  It is important that the battery, starting, and          by the switching of any of the electrical components
charging systems be thoroughly tested and inspected        in the vehicle.
any time a battery needs to be charged or replaced.          The battery is vented to release excess hydrogen
The cause of abnormal discharge, overcharging, or          gas that is created when the battery is being charged
early battery failure must be diagnosed and corrected      or discharged. However, even with these vents, the
before a battery is replaced or returned to service.       hydrogen gas can collect in or around the battery. If
                                                           hydrogen gas is exposed to flame or sparks, it may
                                                           ignite.
DESCRIPTION AND OPERATION                                    If the electrolyte level is low, the battery may arc
                                                           internally and explode. If the battery is equipped
BATTERY                                                    with removable cell caps, add distilled water when-
   The storage battery is a device used to store elec-     ever the electrolyte level is below the top of the
trical energy potential in a chemical form. When an        plates. If the battery cell caps cannot be removed, the
electrical load is applied to the battery terminals, an    battery must be replaced if the electrolyte level
electrochemical reaction occurs within the battery.        becomes low.
This reaction causes the battery to discharge electri-
cal current.                                               BATTERY SIZE AND RATINGS
   The battery is made up of six individual cells that       The battery Group Size number, the Cold Cranking
are connected in series. Each cell contains positively     Amperage (CCA) rating, and the Reserve Capacity
charged plate groups made of lead oxide, and nega-         (RC) rating or Ampere-Hours (AH) rating can be
tively charged plate groups made of sponge lead.           found on the original equipment battery label. Be
These dissimilar metal plates are submerged in a           certain that a replacement battery has the correct
sulfuric acid and water solution called an electrolyte.    Group Size number, as well as CCA, and RC or AH
   As the battery discharges, a gradual chemical           ratings that equal or exceed the original equipment
change takes place within each cell. The sulfuric acid     specification for the vehicle being serviced.
in the electrolyte combines with the plate materials,        See the Battery Classifications and Ratings chart
causing both plates to slowly change to lead sulfate.      in the Specifications section at the back of this group
At the same time, oxygen from the positive plate           for more information. Battery sizes and ratings are
material combines with hydrogen from the sulfuric          discussed in more detail below.
acid, causing the electrolyte to become mainly water.
   The chemical changes within the battery are             GROUP SIZE
caused by the movement of excess or free electrons           The outside dimensions and terminal placement of
between the positive and negative plate groups. This       the battery conform to standards established by the
movement of electrons produces a flow of electrical        Battery Council International (BCI). Each battery is
current through the load device attached to the bat-       assigned a BCI Group Size number to help identify a
tery terminals.                                            correctly-sized replacement.
   As the plate materials become more similar chem-
ically, and the electrolyte becomes less acid, the volt-   COLD CRANKING AMPERAGE
age potential of each cell is reduced. However, by            The Cold Cranking Amperage (CCA) rating speci-
charging the battery with a voltage higher than that       fies how much current (in amperes) the battery can
of the battery, the battery discharging process is         deliver for thirty seconds at -18
