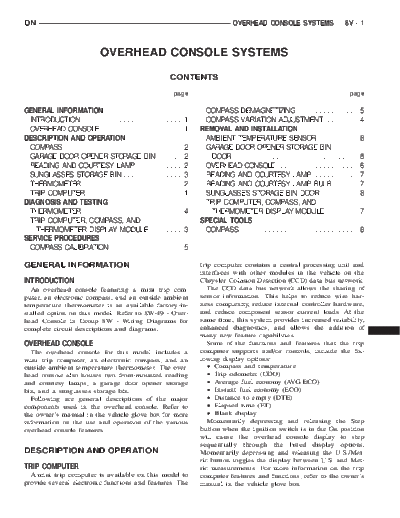

Image preview - the first page of the document
>> Download 98DN_8V documenatation <<
Text preview - extract from the document
DN OVERHEAD CONSOLE SYSTEMS 8V - 1
OVERHEAD CONSOLE SYSTEMS
CONTENTS
page page
GENERAL INFORMATION COMPASS DEMAGNETIZING . . . . . . . . . . . . . . . 5
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . 1 COMPASS VARIATION ADJUSTMENT . . . . . . . . 4
OVERHEAD CONSOLE . . . . . . . . . . . . . . . . . . . . 1 REMOVAL AND INSTALLATION
DESCRIPTION AND OPERATION AMBIENT TEMPERATURE SENSOR . . . . . . . . . . 8
COMPASS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 GARAGE DOOR OPENER STORAGE BIN
GARAGE DOOR OPENER STORAGE BIN . . . . . . 2 DOOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
READING AND COURTESY LAMP . . . . . . . . . . . 2 OVERHEAD CONSOLE . . . . . . . . . . . . . . . . . . . . 6
SUNGLASSES STORAGE BIN . . . . . . . . . . . . . . . 3 READING AND COURTESY LAMP . . . . . . . . . . . 7
THERMOMETER . . . . . . . . . . . . . . . . . . . . . . . . . 2 READING AND COURTESY LAMP BULB . . . . . . 7
TRIP COMPUTER . . . . . . . . . . . . . . . . . . . . . . . . 1 SUNGLASSES STORAGE BIN DOOR . . . . . . . . . 8
DIAGNOSIS AND TESTING TRIP COMPUTER, COMPASS, AND
THERMOMETER . . . . . . . . . . . . . . . . . . . . . . . . . 4 THERMOMETER DISPLAY MODULE . . . . . . . . 7
TRIP COMPUTER, COMPASS, AND SPECIAL TOOLS
THERMOMETER DISPLAY MODULE . . . . . . . . 3 COMPASS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
SERVICE PROCEDURES
COMPASS CALIBRATION . . . . . . . . . . . . . . . . . . 5
GENERAL INFORMATION trip computer contains a central processing unit and
interfaces with other modules in the vehicle on the
INTRODUCTION Chrysler Collision Detection (CCD) data bus network.
An overhead console featuring a mini trip com- The CCD data bus network allows the sharing of
puter, an electronic compass, and an outside ambient sensor information. This helps to reduce wire har-
temperature thermometer is an available factory-in- ness complexity, reduce internal controller hardware,
stalled option on this model. Refer to 8W-49 - Over- and reduce component sensor current loads. At the
head Console in Group 8W - Wiring Diagrams for same time, this system provides increased reliability,
complete circuit descriptions and diagrams. enhanced diagnostics, and allows the addition of
many new feature capabilities.
OVERHEAD CONSOLE Some of the functions and features that the trip
The overhead console for this model includes a computer supports and/or controls, include the fol-
mini trip computer, an electronic compass, and an lowing display options:
